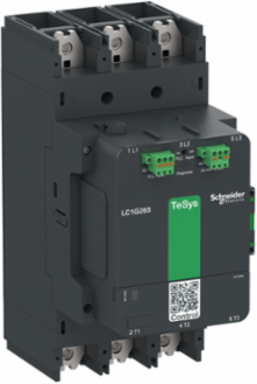

Schneider Electric LC1G400LSEA TeSys Giga High Power Contactor 3 Pole 400A AC-3 290mm x 140mm x 226mm
- MPN: LC1G400LSEA
- PPN: SCH-LC1G400LSEA
CAD
$4917.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Giga high power contactor, 3 poles (3 NO) for category AC-3 applications up to 400A 250kW@440V. It provides a 200-500V AC/DC wide band low consumption electronic coil, PLC output control and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection with cable memory kit and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 290mm x 140mm x 209mm (H x W x D), compact size enables panel space savings. Multi standards certified (CE,CB,CCC,cULus,EAC,KC,RCM,Marine). Unique QR code provides quick access to complete product data.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Czechia, France, United States
Depth226 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Maximum Operating Rate
- 600 cyc/h AC-3, 600 cyc/h AC-3e300 cyc/h AC-1150 cyc/h AC-4
- Maximum Horse Power Rating
- 125 hp at 200/208 V 60 Hz150 hp at 230/240 V 60 Hz300 hp at 460/480 V 60 Hz400 hp at 575/600 V 60 Hz
- Rated Breaking Capacity
- 3480 A at 440 V
Control Circuit Voltage Limitsoperational: 0.8 Uc Min...1.1 Uc Max (at <60 °C)drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
Maximum Motor Phase Current400 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 500 A aM at <= 440 V for motor315 A aM at <= 690 V for motor630 A gG at <= 690 V, 600 A UL Type L at <= 600 V
- Electrical Durability
- 300 cycles AC-1 400 V500 cycles AC-3 400 V, 500 cycles AC-3e 400 V150 cycles AC-4 400 V
- Motor Power Kw
- 200 kW at 400 V AC 50/60 Hz (AC-3), 200 kW at 415 V AC 50/60 Hz (AC-3), 250 kW at 440 V AC 50/60 Hz (AC-3), 250 kW at 500 V AC 50/60 Hz (AC-3), 315 kW at 690 V AC 50/60 Hz (AC-3), 220 kW at 1000 V AC 50/60 Hz (AC-3)200 kW at 400 V AC 50/60 Hz (AC-4), 200 kW at 415 V AC 50/60 Hz (AC-4), 220 kW at 440 V AC 50/60 Hz (AC-4), 250 kW at 500 V AC 50/60 Hz (AC-4), 315 kW at 690 V AC 50/60 Hz (AC-4), 220 kW at 1000 V AC 50/60 Hz (AC-4)110 kW at 230 V AC 50/60 Hz (AC-3e)200 kW at 400 V AC 50/60 Hz (AC-3e), 200 kW at 415 V AC 50/60 Hz (AC-3e)250 kW at 440 V AC 50/60 Hz (AC-3e), 250 kW at 500 V AC 50/60 Hz (AC-3e)315 kW at 690 V AC 50/60 Hz (AC-3e)220 kW at 1000 V AC 50/60 Hz (AC-3e), 110 kW at 230 V AC 50/60 Hz (AC-3), 110 kW at 230 V AC 50/60 Hz (AC-4)
- Utilisation Category
- AC-1, AC-3, AC-3e, AC-4, AC-5a, AC-5b, AC-6a, AC-6b, AC-8b, AC-8a, DC-1, DC-3, DC-5
- [Uc] Control Circuit Voltage
- 200...500 V, 200...500 V AC 50/60 Hz, 200...500 V DC
- Connections - Terminals
- control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end, power circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 12.049848323550044, 12 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 76 kg CO2 eq., 75.68125808925478
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Service Catalog Item
- Finished good
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Impedance
- 0.0001 Ohm
- Compatibility Code
- LC1G
- Device Short Name
- LC1G
- Inrush Power In W
- 300 W
- Mounting Support
- plate
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Range Of Product
- TeSys Giga
- Safety Reliability Level
- B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 1 404 kg CO2 eq.
- Control Circuit Voltage
- 200...500 V
- Rated Thermal Current Hv
- 550 A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 1576.8
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 290 mm
- [Icw] Rated Short-time Withstand Current
- 3.6 kA - 10 s2.4 kA - 30 s1.7 kA - 1 min1.2 kA - 3 min1.0 kA - 10 min
- [Ui] Rated Insulation Voltage
- 1000 V
- Hold-in Power Consumption In Va
- 15.4-15.4 VA
- Rated Thermal Current (Ith)
- 550 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contactor Applicationpower switching, motor control
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor openvibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Power Dissipation Per Pole30 W AC-1 - Ith 550 A, 16 W AC-3 - Ith 400 A
Certificate AgencyCB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
[Ue] Rated Operational Voltage<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Carbon Footprint Of The Distribution Phase [A4]13.716980807965497, 14 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.11359776545629194
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 303 kg CO2 eq., 1302.6407834784077
Local Publishable Date2026-07-15
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityYes
Average Life Duration20 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2121
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologybuilt-in bidirectional peak limiting
Connection Pitch45 mm
Inrush Power In Va535-535 VA
Mechanical Durability8 Mcycles
Number Of Modules Per Plc Per Pc1
Operating Time40...70 ms closing15...50 ms opening
Pole Contact Composition3 NO
Product Or Component Typecontactor
RangeTeSys
ReturnabilityYes
Software Versionv6.2.4
Tightening Torque35 N.m
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Inf Motor Phase Current400 A
Pep CodeENVPEP2105013EN
Pep Verification Date2026-03-19
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; China, CN
Recyclability Potential In %55
Width Nominal140 mm
[Ie] Rated Operational Current550 A (at <40 °C) at <= 1000 V AC-1400 A (at <60 °C) at <= 440 V AC-3
[Uimp] Rated Impulse Withstand Voltage8 kV
Hold-in Power Consumption In W8.6-8.6 W
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)8.99 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2105013
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-19
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint1404.2024684646344
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2105013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Giga
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
