Schneider Electric LC1G500LSEA TeSys Giga High Power Contactor 3 Pole 500A AC-3 200-500V Coil
- MPN: LC1G500LSEA
- PPN: SCH-LC1G500LSEA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

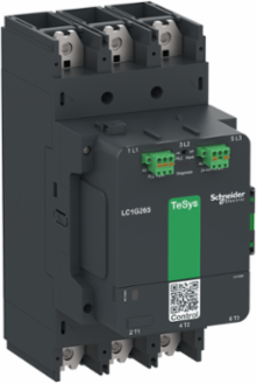

TeSys Giga high power contactor, 3 poles (3 NO) for category AC-3 applications up to 500A 315kW@440V. It provides a 200-500V AC/DC wide band low consumption electronic coil, PLC output control and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection with cable memory kit and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 290mm x 140mm x 209mm (H x W x D), compact size enables panel space savings. Multi standards certified (CE,CB,CCC,cULus,EAC,KC,RCM,Marine). Unique QR code provides quick access to complete product data.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Czechia, France
Depth226 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Maximum Operating Rate
- 600 cyc/h AC-3, 600 cyc/h AC-3e300 cyc/h AC-1150 cyc/h AC-4
- Maximum Horse Power Rating
- 150 hp at 200/208 V 60 Hz200 hp at 230/240 V 60 Hz400 hp at 460/480 V 60 Hz450 hp at 575/600 V 60 Hz
- Rated Breaking Capacity
- 4600 A at 440 V
Control Circuit Voltage Limitsoperational: 0.8 Uc Min...1.1 Uc Max (at <60 °C)drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
Maximum Motor Phase Current500 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 500 A aM at <= 440 V for motor400 A aM at <= 690 V for motor800 A gG at <= 690 V, 600 A UL Type L at <= 600 V
- Electrical Durability
- 300 cycles AC-1 400 V500 cycles AC-3 400 V, 500 cycles AC-3e 400 V150 cycles AC-4 400 V
- Motor Power Kw
- 250 kW at 400 V AC 50/60 Hz (AC-3), 250 kW at 415 V AC 50/60 Hz (AC-3), 315 kW at 440 V AC 50/60 Hz (AC-3), 355 kW at 500 V AC 50/60 Hz (AC-3), 355 kW at 690 V AC 50/60 Hz (AC-3), 335 kW at 1000 V AC 50/60 Hz (AC-3)250 kW at 400 V AC 50/60 Hz (AC-4), 250 kW at 415 V AC 50/60 Hz (AC-4)295 kW at 500 V AC 50/60 Hz (AC-4), 355 kW at 690 V AC 50/60 Hz (AC-4), 280 kW at 1000 V AC 50/60 Hz (AC-4)147 kW at 230 V AC 50/60 Hz (AC-3e)250 kW at 400 V AC 50/60 Hz (AC-3e), 250 kW at 415 V AC 50/60 Hz (AC-3e)280 kW at 440 V AC 50/60 Hz (AC-3e)315 kW at 500 V AC 50/60 Hz (AC-3e)355 kW at 690 V AC 50/60 Hz (AC-3e)335 kW at 1000 V AC 50/60 Hz (AC-3e)160 kW at 230 V AC 50/60 Hz (AC-3)150 kW at 230 V AC 50/60 Hz (AC-4), 295 kW at 440 V AC 50/60 Hz (AC-4)
- Utilisation Category
- AC-1, AC-3, AC-3e, AC-4, AC-5a, AC-5b, AC-6a, AC-6b, AC-8b, AC-8a, DC-1, DC-3, DC-5
- [Uc] Control Circuit Voltage
- 200...500 V, 200...500 V AC 50/60 Hz, 200...500 V DC
- Connections - Terminals
- control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end, power circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 12.049848323550044, 12 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 76 kg CO2 eq., 75.68125808925478
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2105013
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2121
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Coil Technology
- built-in bidirectional peak limiting
- Connection Pitch
- 45 mm
- Inrush Power In Va
- 535-535 VA
- Mechanical Durability
- 8 Mcycles
- Number Of Modules Per Plc Per Pc
- 1
- Operating Time
- 40...70 ms closing15...50 ms opening
- Pole Contact Composition
- 3 NO
- Product Or Component Type
- contactor
- Range
- TeSys
- Returnability
- Yes
- Software Version
- v6.2.4
- Tightening Torque
- 35 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Inf Motor Phase Current
- 500 A
- Pep Code
- ENVPEP2105013EN
- Pep Verification Date
- 2026-03-19
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; China, CN
- Recyclability Potential In %
- 55
- Width Nominal
- 140 mm
- [Ie] Rated Operational Current
- 700 A (at <40 °C) at <= 1000 V AC-1500 A (at <60 °C) at <= 440 V AC-3
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Hold-in Power Consumption In W
- 8.6-8.6 W
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 9.536 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contactor Applicationpower switching, motor control
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor openvibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Power Dissipation Per Pole40 W AC-1 - Ith 700 A, 20 W AC-3 - Ith 500 A
Certificate AgencyCB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
[Ue] Rated Operational Voltage<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Carbon Footprint Of The Distribution Phase [A4]13.716980807965497, 14 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.11359776545629194
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 520 kg CO2 eq., 1519.7475807248088
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Impedance0.00008 Ohm
Compatibility CodeLC1G
Device Short NameLC1G
Inrush Power In W300 W
Mounting Supportplate
Number Of Poles3P
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Range Of ProductTeSys Giga
Safety Reliability LevelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 621 kg CO2 eq.
Control Circuit Voltage200...500 V
Rated Thermal Current Hv700 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh1839.6
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal290 mm
[Icw] Rated Short-time Withstand Current4.0 kA - 10 s2.8 kA - 30 s2.2 kA - 1 min1.5 kA - 3 min1.2 kA - 10 min
[Ui] Rated Insulation Voltage1000 V
Hold-in Power Consumption In Va15.4-15.4 VA
Rated Thermal Current (Ith)700 A
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2105013
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-19
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint1621.3092657110356
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2105013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Giga
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
