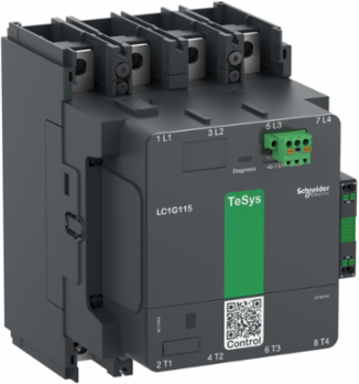

Schneider Electric LC1G1504EHEN TeSys Giga High Power Contactor, 4 Pole, 275A, 48-130V AC/DC Coil
- MPN: LC1G1504EHEN
- PPN: SCH-LC1G1504EHEN
CAD
$1869.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys Giga High Power Contactor, 4 Pole, 275A, 48-130V AC/DC Coil
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Czechia, France
Depth193 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
- Irms Rated Making Capacity
- 1890 A at 440 V
- Rated Breaking Capacity
- 1280 A at 440 V
Maximum Operating Rate600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1
Maximum Motor Phase Current150 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 160 A aM at <= 440 V for motor, 160 A aM at <= 690 V for motor, 315 A gG at <= 690 V, 300 A UL Type J at <= 600 V
- Operating Time
- 40...70 ms closing, 15...50 ms opening
- Safety Reliability Level
- B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
- Certificate Agency
- CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
- [Ie] Rated Operational Current
- 150 A (at <60 °C) at <= 440 V AC-3, 275 A (at <40 °C) at <= 1000 V AC-1
- [Ue] Rated Operational Voltage
- <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 9.618258068671459, 10 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.07965401712514929
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 1 086 kg CO2 eq., 1085.5339862320066
- Local Publishable Date
- 2026-04-12
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Impedance
- 0.00018 Ohm
- Compatibility Code
- LC1G
- Contactor Application
- power switching
- Electrical Durability
- 300 cycles AC-1 400 V
- Inrush Power In W
- 445 W
- Mounting Support
- plate
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Range Of Product
- TeSys Giga
- Software Version
- v6.2.4
- Tightening Torque
- 18 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Rated Thermal Current Hv
- 275 A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 1314
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 193 mm
- [Ith] Conventional Free Air Thermal Current
- 275 A (at 40 °C)
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Hold-in Power Consumption In W
- 7.8-7.8 W
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 5.679 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Power Dissipation Per Pole10 W AC-1 - Ith 275 A, 5 W AC-3 - Ith 150 A
Utilisation CategoryAC-3, AC-3e, AC-1, AC-5a, AC-5b, AC-6a, AC-6b, DC-1, DC-3, DC-5
[Icw] Rated Short-time Withstand Current1.2 kA - 10 s, 0.7 kA - 30 s, 0.6 kA - 1 min, 0.45 kA - 3 min, 0.35 kA - 10 min
[Uc] Control Circuit Voltage48...130 V, 48...130 V AC 50/60 Hz, 48...130 V DC
Connections - Terminalscontrol circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable endpower circuit: bar 2 - busbar cross section: 25 x 6 mm, power circuit: lugs-ring terminals 1 185-185 mm², control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]8.449275572139737, 8 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]53 kg CO2 eq., 53.06720782473322
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2121
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologybuilt-in bidirectional peak limiting
Connection Pitch35 mm
Device Short NameLC1G
Inrush Power In Va640-640 VA
Mechanical Durability8 Mcycles
Number Of Poles4P
Pole Contact Composition4 NO
Product Or Component Typecontactor
RangeTeSys
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 157 kg CO2 eq.
Control Circuit Voltage48...130 V
Pep CodeENVPEP2105013EN
Pep Verification Date2026-03-19
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; China, CN
Recyclability Potential, In %55
Width Nominal143 mm
[Ui] Rated Insulation Voltage1000 V
Hold-in Power Consumption In Va18.7-18.7 VA
Rated Thermal Current (Ith)275 A
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2105013
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-19
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint1156.748381714676
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2105013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Giga
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
