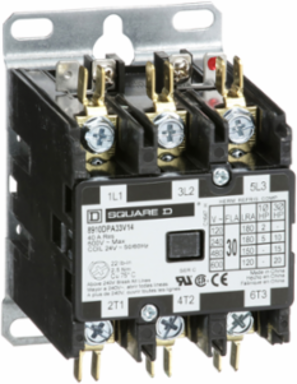

Square D 8910DPA33V14 Definite Purpose Contactor, 30A, 3 Pole, 20HP at 575VAC, 24VAC Coil
- MPN: 8910DPA33V14
- UPC: 785901073543
- PPN: SCH-8910DPA33V14
CAD
$132.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

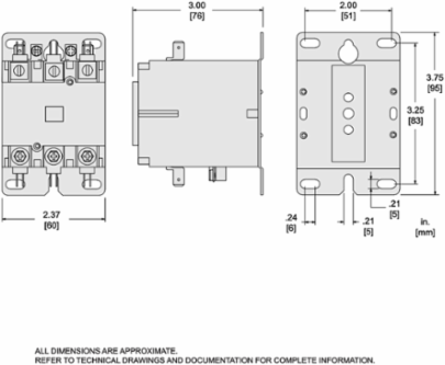

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
Features
- Engineered with three robust poles rated for 30 Amps of continuous inductive load, this definite purpose contactor is purpose-built for high-demand heating, air conditioning, and refrigeration systems. It ensures clean, low-resistance electrical connections, preventing contact pitting and premature failure during frequent, high-inrush cycling of heavy industrial compressors and condenser fans.
- Boasting an impressive power rating of 20 HP at 575V AC (as well as 15 HP at 460V AC and 10 HP at 230V AC), this contactor provides the mechanical muscle needed to control demanding three-phase electric motors. This heavy-duty performance profile allows industrial facility managers to standardize their control panels, confidently replacing lighter-duty relays with a single, reliable component.
- Equipped with a high-efficiency 24V AC coil operating at 50/60 Hz, this contactor interfaces directly with common commercial thermostats and low-voltage control transformers. The optimized coil design minimizes power consumption and localized heat buildup within your control enclosure, protecting adjacent solid-state control boards and electronics from thermal stress.
- Featuring heavy-duty binder-head screws alongside standard quick-connect terminals, this unit offers versatile wiring options tailored for rapid field deployment. This design ensures commercial electricians can achieve high-torque, vibration-resistant terminations using standard hand tools, significantly reducing installation time and preventing loose-wire arcing hazards over years of service.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Mexico, United States
Complementary Attributes
- Line Rated Current
- 30 A
- Maximum Horse Power Rating
- 2-2 hp 115 V AC, 1 phase5-5 hp 230 V AC, 1 phase10-10 hp 230 V AC, 3 phase15-15 hp 460 V AC, 3 phase20-20 hp 575 V AC, 3 phase
Locked Rotor Rated Current150 A 460 V AC120 A 575 V AC180 A 277 V AC
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- quick connect terminals, binder head
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Phase
- 3 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- DPA
- Sustainable Packaging
- Yes
- [Uc] Control Circuit Voltage
- 24 V AC 50/60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL Recognized, CSA
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2541
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Number Of Poles3P

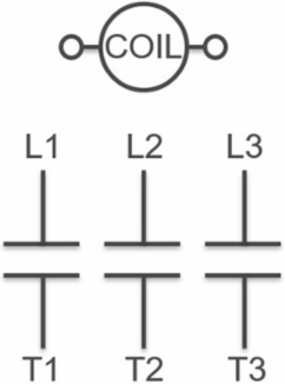

Pole Contact Composition3 NO
Product Or Component TypeDefinite Purpose Contactor
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)458.128 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
- Range Of Product
- DPA
Product Or Component TypeDefinite Purpose Contactor
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
