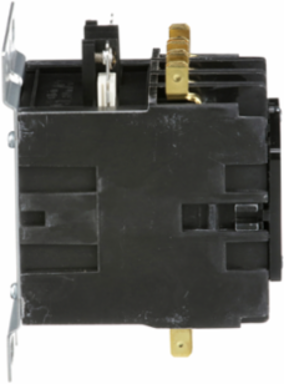

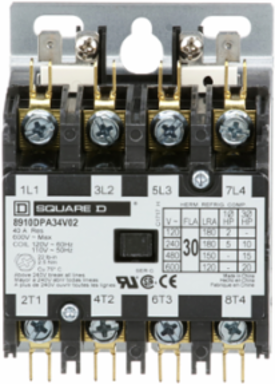

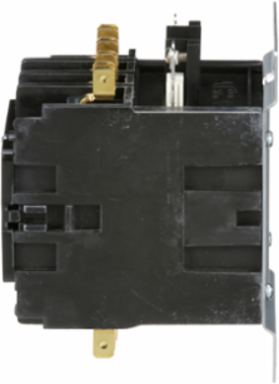

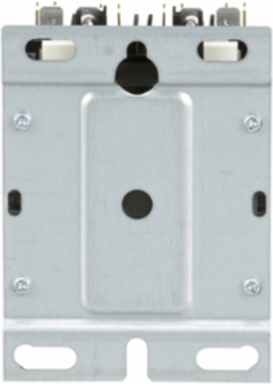

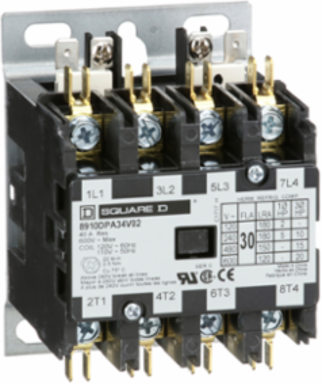

Square D 8910DPA34V02 Definite Purpose Contactor, 30A, 4 Pole, 20HP, 575VAC, 120/240VAC Coil

MPN: 8910DPA34V02
UPC: 785901073505
PPN: SCH-8910DPA34V02

$176.25

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This four pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.78 inches by 2.75 inches and 3.04 tall. These contactors are UL component recognized and CSA certified.

Features

Designed specifically for heating, ventilation, air conditioning, and refrigeration (HVACR) applications, this robust 30A definite purpose contactor effortlessly manages heavy inductive and resistive electrical loads. The versatile 4-pole design allows you to simultaneously switch four separate circuits, streamlining complex commercial wiring setups and drastically reducing the hardware footprint inside crowded control enclosures.
Engineered with an industry-standard 120-volt AC operating coil (V02 suffix), this electromechanical relay guarantees seamless, drop-in compatibility with the vast majority of existing building automation and residential control systems. This straightforward voltage matching eliminates the frustrating, costly need to install stepping transformers, empowering HVAC technicians to execute fast, profitable swap-outs on malfunctioning chillers or heating elements.
Built to Schneider Electric's legendary space-saving standards, this compact motor control device features a standardized mounting plate that aligns perfectly with older, bulkier OEM contactors. Complete with easy-to-access binder head screws and dual quick-connect terminals on every pole, it dramatically speeds up the field installation process while guaranteeing a secure, vibration-resistant connection.
Fully UL Recognized and CSA Certified, this heavy-duty Square D component is rigorously factory-tested to withstand millions of harsh mechanical operations without the contacts pitting or welding shut. Premium silver-alloy contacts and a durable, dust-resistant housing actively prevent catastrophic motor failure, ensuring your facility's critical climate control systems remain strictly code-compliant and operational year-round.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, Mexico, United States
Width	2.75 in

Height	3.77 in

Complementary Attributes

Line Rated Current	30 A
Maximum Horse Power Rating	2-2 hp 115 V AC, 1 phase5-5 hp 230 V AC, 1 phase10-10 hp 230 V AC, 3 phase15-15 hp 460 V AC, 3 phase20-20 hp 575 V AC, 3 phase

Locked Rotor Rated Current	150 A 460 V AC120 A 575 V AC180 A 277 V AC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	binder head, quick connect terminals
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Energy Efficiency Optimized	False
Phase	3 phase
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	DPA
Sustainable Packaging	Yes
Height Useful	3.77 in
Width Real	2.75 in
[Ue] Rated Operational Voltage	600 V AC
Package Weight(Lbs)	557.918 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	UL Recognized, CSA
Local Publishable Date	2026-06-27
Stocking Flag	N
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2541
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N

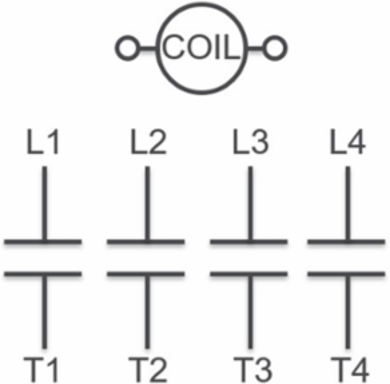

Number Of Poles	4P
Pole Contact Composition	4 NO
Product Or Component Type	Definite Purpose Contactor
Returnability	Yes
Height Nominal	3.77 in
Width Nominal	2.75 in
[Uc] Control Circuit Voltage	120 V AC 60 Hz110 V AC 50 Hz
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490065

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes

Take Back	No
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
