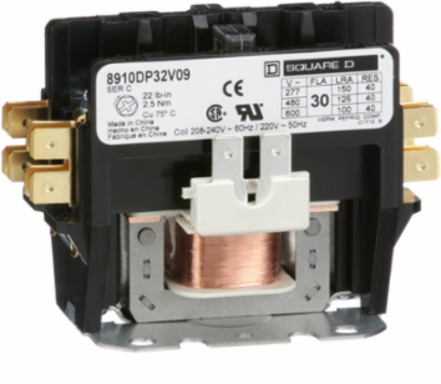

Square D 8910DP32V09 Definite Purpose Contactor, 30A, 2 Pole, 208/240VAC 60Hz Coil
- MPN: 8910DP32V09
- UPC: 785901073345
- PPN: SCH-8910DP32V09
CAD
$97.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

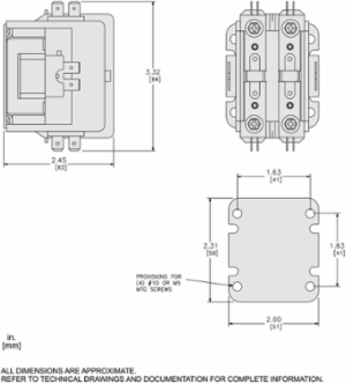

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.
Features
- Engineered as a 2-pole (2NO) definite purpose contactor, this Square D by Schneider Electric unit handles a 30A full load current and a 40A resistive load rating up to 600 VAC. It is rated for 2 HP at 115 VAC or 5 HP at 230 VAC single-phase configurations, making it an ideal drop-in solution for demanding compressor, heating, refrigeration, and data processing equipment
- electromechanical contactor operates via a 208-240 VAC coil at 60 Hz or 220 VAC at 50 Hz, ensures native compatibility with common two-pole commercial electrical feeds and condenser control circuits. The premium, non-replaceable encapsulated coil provides reliable contact engagement and prevents chattering or premature dropouts during minor line voltage fluctuations.
- Built to handle severe inductive startup spikes, this heavy-duty contactor boasts a robust locked rotor rating of up to 150A at 277 VAC, 125A at 460 VAC, and 100A at 575 VAC. This excessive thermal and mechanical headroom safeguards your system against contact welding and pitted contact surfaces during high-inrush motor starts.

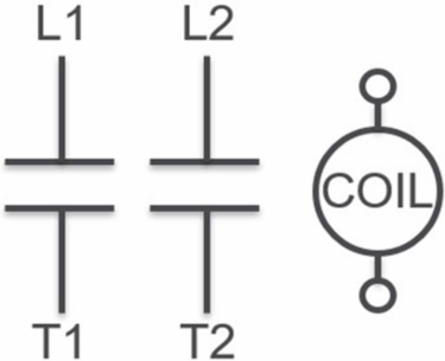

- This compact device incorporates dual-type electrical connections utilizing both binder head screws and quick-connect terminals. This versatile dual-termination design accommodates standard ring/fork terminals or fast-disconnect push-on leads, allowing field technicians to complete replacements in tight electrical enclosures within minutes.
- Manufactured to demanding industrial safety benchmarks, the 8910DP32V09 is fully UL Recognized and CSA Certified with a mechanical design lifecycle rated for long-term endurance.
Documentation & Downloads
Specifications
Additional
- Motor Power Hp
- 2 hp 115 V AC, 1 phase; 5 hp 230 V AC, 1 phase
- Control Circuit Voltage
- 208...240 V AC 60 Hz; 220 V AC 50 Hz
- Locked Rotor Current
- 125 A (460 V AC); 100 A (575 V AC); 150 A (277 V AC)
- Pole Contact Composition
- 2 NO
- Phase
- 1 phase
- UL Certification
- UL recognized
- RoHS Compliance
- Compliant with Exemptions
- Mercury Free
- Yes
Rated Current30 A full load
Operational Voltage600 V AC
Number of Poles2P
Electrical Connectionbinder head, quick connect terminals
Contact Material Type2
CSA CertificationCSA
RoHS ExemptionYes
Country of OriginChina
