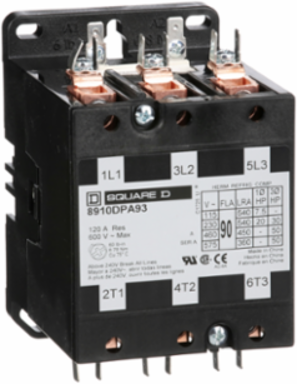

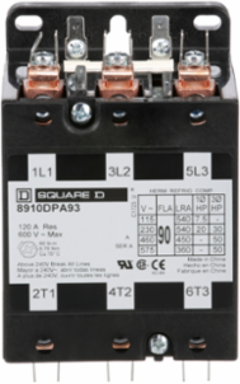

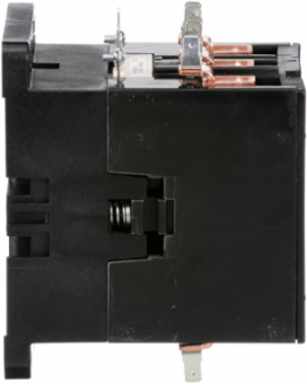

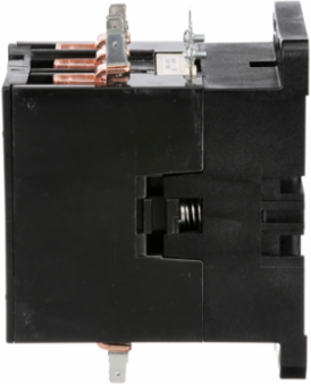

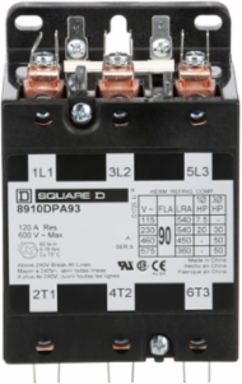

Square D 8910DPA93V02 Definite Purpose Contactor 90A 3 Pole 50HP 575VAC 110/120VAC Coil
- MPN: 8910DPA93V02
- UPC: 785901118398
- PPN: SCH-8910DPA93V02
CAD
$544.57
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 90 ampere and a resistive rating of 120 amperes. It also has a 7.5 HP at 115 VAC single phase, 20 HP at 230 VAC single phase and 30 HP at 230 VAC three phase, 50 HP at 460 VAC three phase and 50 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 5.20 inches by 3.39 inches and 4.76 tall. These contactors are UL component recognized and CSA certified.
Features
- This Square D by Schneider Electric Type DPA definite purpose contactor is engineered with a powerful 90 A inductive full-load rating and a 120 A resistive capacity up to 600 V AC. It provides an ultra-robust, stable switching mechanism designed specifically for high-capacity industrial chillers, large-scale commercial HVAC systems, and high-wattage resistive heating banks that demand continuous, high-current power handling.
- Equipped with a high-performance 120 V AC control coil operating at 60 Hz (110 V AC at 50 Hz, voltage code V02), this contactor integrates seamlessly with standard building management systems (BMS), commercial thermostats, and automated PLC control loops. This direct control voltage eliminates the need for supplementary interposing relays, simplifying your panel's control circuit architecture.

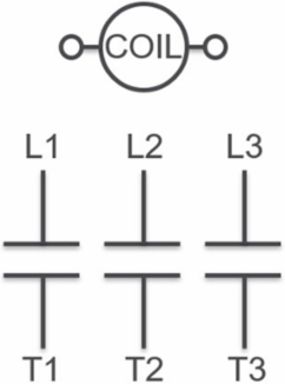

- Built with a standard 3-pole, 3 NO power contact configuration, this electromechanical device safely manages massive multi-phase motor startups. It carries robust performance ratings up to 25 hp at 230 V, 50 hp at 460 V, and 50 hp at 575 V AC for 3-phase systems, providing mechanical contractors with maximum torque handling for heavy industrial pumps, compressors, and ventilation fans.
- Featuring heavy-duty box lugs with high-torque binding screws, this contactor is designed to establish a gas-tight, low-resistance connection with thick power feeder lines. The rugged termination design effectively minimizes localized contact impedance and prevents thermal expansion issues, ensuring the contactor operates coolly under sustained maximum-amperage conditions.

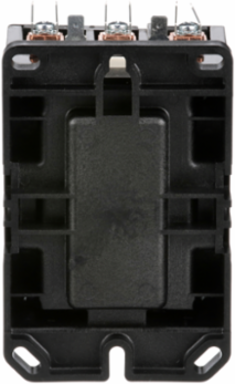

- This contactor features a space-conscious, compact footprint with straight-through wiring logic to significantly reduce field installation times. The universal mounting base plate is pre-drilled with traditional screw-fixing slots, allowing field service technicians to execute quick drop-in replacements on existing backpanels without drilling new holes or modifying the structural layout.
- This authentic Square D component is fully UL component recognized, and CSA certified ensuring full compliance with both Canadian and international electrical safety codes. Utilizing premium silver-cadmium oxide contacts that resist pitting and welding, this factory-spec replacement guarantees a long operational life and passes rigid field inspections with ease.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Mexico, United States
- Width
- 3.39 in
Height5.26 in
Depth4.67 in
Complementary Attributes
- Locked Rotor Rated Current
- 540 A 277 V AC, 450 A 460 V AC, 360 A 575 V AC
- Line Rated Current
- 90 A
Maximum Horse Power Rating7.5-7.5 hp 115 V AC, 1 phase, 20-20 hp 230 V AC, 1 phase, 30-30 hp 230 V AC, 3 phase, 50-50 hp 460 V AC, 3 phase, 50-50 hp 575 V AC, 3 phase
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- quick connect terminals, box lugs
- [Uc] Control Circuit Voltage
- 120 V AC 60 Hz, 110 V AC 50 Hz
- Local Publishable Date
- 2026-03-25
- Future Imap
- 312.16
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2541
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Number Of Poles
- 3P
- Pole Contact Composition
- 3 NO
- Product Or Component Type
- Definite Purpose Contactor
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Useful
- 5.26 in
- Width Real
- 3.39 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL Recognized, CSA
Local Data StatusPublishable
Return IndicatorY
Future Msrp396.38
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Phase3 phase
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductDPA
Sustainable PackagingYes
Height Nominal5.26 in
Width Nominal3.39 in
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)1.669 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
- Range Of Product
- DPA
Product Or Component TypeDefinite Purpose Contactor
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
