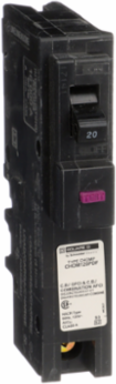

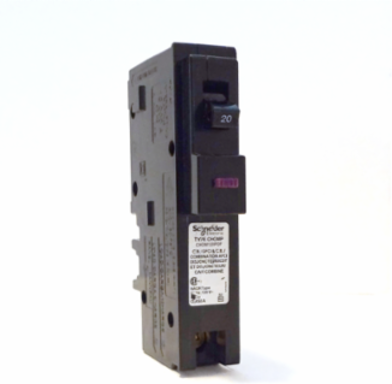

Schneider Electric CHOM120PDF Homeline Mini Circuit Breaker 20A 1 Pole 120VAC 10kA AIR Plug-On Neutral
- MPN: CHOM120PDF
- UPC: 785901986508
- PPN: SCH-CHOM120PDF
- UNSPSC: 39121603
CAD
$120.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. CHOM breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. It includes a Dual Function feature with plug on neutral. CHOM Homeline miniature circuit breakers are CSA certified.
Features
- This advanced breaker combines Class A 5mA Ground Fault (GFCI) and Combination Arc Fault (AFCI) protection into a single, high-performance unit. By detecting both dangerous arcing often caused by frayed wires behind walls and ground leakage, it provides the highest level of safety required by modern National Electrical Code (NEC) standards for bedrooms, kitchens, and laundry areas.
- Engineered with Schneider s innovative Plug-On Neutral technology, this breaker connects directly to the neutral bar of a compatible HomelineTM load center, eliminating the need for a pigtail wire. This creates a cleaner, more organized gutter space within your panel, reducing installation time by up to 20% and improving airflow to prevent heat buildup.
- Equipped with an onboard diagnostic LED, this unit communicates the specific cause of a trip whether it was an arc fault, a ground fault, or a thermal overload. This "smart" feedback loop allows homeowners and electricians to stop guessing and start fixing, significantly reducing the billable hours spent on troubleshooting electrical issues.
- Specifically designed for Square DTM HomelineTM load centers, this single-pole, 120V breaker is the factory-authorized solution for modern residential electrical systems. Using genuine Schneider components ensures a secure, heat-resistant connection that maintains your panel s UL listing and protects your long-term property value.
Documentation & Downloads
Specifications
Key Specifications
- Connections - Terminals
- plug-on neutral
- Range Of Product
- Homeline
- Mounting Mode
- plug-on
- Line Rated Current
- 20 A
Circuit Breaker Typecombination ARC-fault class A 5 mA || ground fault protecting
Product Or Component Typeminiature circuit-breaker
Short-Circuit Current10 kA
[Ue] Rated Operational Voltage120 V AC
Complementary
- Number Of Spaces Required
- 1
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212006
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI2212006
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
