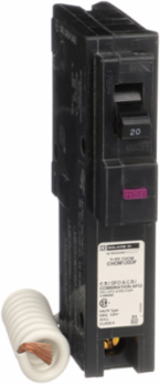

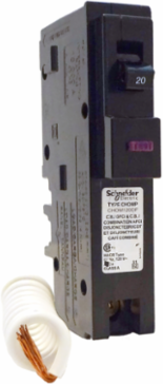

Schneider Electric CHOM120DF Mini circuit breaker, Homeline, 20A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug in, UL

Mini circuit breaker, Homeline, 20A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug in, UL
Mini circuit breaker, Homeline, 20A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug in, UL
  • MPN: CHOM120DF
  • UPC: 785901741596
  • PPN: SCH-CHOM120DF

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$184.69/ EA

Description

CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. CHOM breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. It includes a Dual Function feature already installed. CHOM Homeline miniature circuit breakers are CSA certified.

Specifications

Complementary

Number Of Spaces Required
1

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1406034
Eu Rohs Directive
Compliant with Exemptions
Halogen Content Performance
Halogen free product
Circularity ProfileENVEOLI1406034
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Specifications

Connections - Terminals
pigtail neutral
Circuit Breaker Type
ARC-fault || ground fault protecting class A 5 mA
Range Of Product
Homeline
Electrical Connection
pigtail connector || screw clamp terminals
Product Or Component Type
miniature circuit-breaker
Mounting Modeplug-on
Short-Circuit Current10 kA
Poles Description1P
[In] Rated Current20 A
[Ue] Rated Operational Voltage120 V AC

Environment

Product Certifications
CSA
Ambient Air Temperature For Operation40 °C
