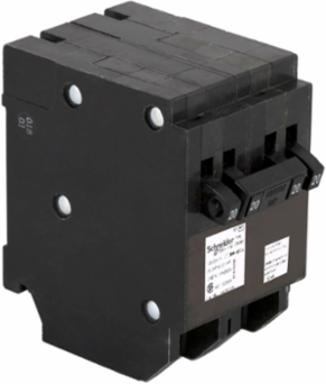

Schneider Electric CHOMT2020220 Quad Tandem Circuit Breaker, 2 x 1 Pole at 20A, 1 x 2 Pole at 20A, 120/240V AC, 10kA AIR, Plug-On
- MPN: CHOMT2020220
- UPC: 785901914020
- PPN: SCH-CHOMT2020220
CAD
$58.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
CHOMT Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This CHOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 20 A at 120/240 VAC and the single pole breakers are rated 20 A and 20 A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are CSA certified.
Features
- This quad tandem circuit breaker combines two single-pole 20A breakers and one double-pole 20A breaker into a single module that occupies just two standard panel slots. It allows residential electricians and contractors to double their circuit capacity, freeing up physical space for home renovations, basement finishes, or EV charger installations without the massive expense of a full service sub-panel upgrade.
- Featuring an independent 20-amp double-pole breaker flanked by two 20-amp single-pole breakers, this unit simultaneously delivers both independent 120V and shared 240V power streams. It provides the ideal consolidated solution for running standard living space branch circuits alongside dedicated heavy-draw hardware, ensuring highly efficient distribution from a single footprint.
- Bearing an official Heating, Air Conditioning, and Refrigeration (HACR) rating, this thermal-magnetic breaker is purpose-built to withstand the intense, instantaneous current spikes common during compressor and motor startups. This specialized trip profile safeguards your infrastructure against irritating nuisance tripping while delivering robust overcurrent defense for central air conditioners, heat pumps, and large workshop appliances.
- Equipped with robust screw-clamp terminals, the breaker reliably accepts a broad range of conductors from 14 AWG down to 8 AWG in both copper and aluminum wire configurations. This wide compatibility ensures seamless integration with standard residential Romex cables or heavier distribution lines, giving installers complete material flexibility and guaranteeing secure, low-resistance connections that prevent terminal overheating.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 20 A
- Short-Circuit Current
- 10 kA
- Poles Description
- 1P || 2P
- Electrical Connection
- screw clamp terminals
- Ambient Air Temperature for Operation
- 40 B0C
- EU RoHS Directive
- Compliant
- Mercury Free
- Yes
Rated Operational Voltage120/240 V AC
Circuit Breaker Typequad
Mounting Modeplug-on
Wire GaugeAWG 14...AWG 8 aluminum/copper
Product CertificationsCSA
China RoHS RegulationPro-active China RoHS declaration
Toxic Heavy Metal FreeYes
