Schneider Electric 9001K2L35LYAH13 Harmony Illuminated Push Button 30 mm Amber LED 24...28V IP66

MPN: 9001K2L35LYAH13
UPC: 785901589785
PPN: SCH-9001K2L35LYAH13

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$253.55

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

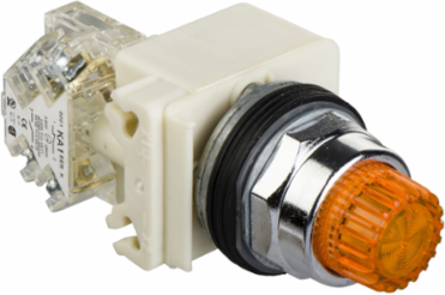

This Harmony 9001K, modular illuminated projecting amber push button is supplied with contact block. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Mexico, United States

Physical Attributes

Cad Overall Depth	103 mm
Cad Overall Width	54 mm
Light Source Color	yellow

Cad Overall Height	42 mm
Size	30 mm

Complementary Attributes

Rated Breaking Capacity	1.2 kA 600 V AC-15, 720 VA1.5 kA 480 V AC-15, 720 VA3 kA 240 V AC-15, 720 VA6 kA 120 V AC-15, 720 VA0.1 kA 600 V DC-130.27 kA 250 V DC-130.55 kA 125 V DC-13

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Operator Profile	projecting, amber projecting, unmarked
Terminals Description Iso N°1	(13-14-11-12)OF, (13-14-11-12)OF
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.5 kg CO2 eq., 0.4982457377282273
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	1 kg CO2 eq., 1.237705307250279
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Bulb Base	BA 9s
Contact Operation	standard
Contacts Type And Composition	1 C/O
Light Block Supply	direct
Mechanical Durability	5000000 cycles
Operating Position	any position
Overvoltage Category	class II conforming to IEC 61140
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TC
Returnability	Yes
Shape Of Signaling Unit Head	octagonal
Software Version	v6.2.4
Tightening Torque	0.8-0.8 N.m IEC 60947-1
Type Of Operator	spring return
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2503027EN
Pep Verification Date	2025-03-26
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
[Icm] Rated Short-circuit Making Capacity	12 kA 600 V AC-15, 7200 VA15 kA 480 V AC-15, 7200 VA30 kA 240 V AC-15, 7200 VA60 kA 120 V AC-15, 7200 VA
[Ui] Rated Insulation Voltage	250 V 3)IEC 60947-1
[Us] Rated Supply Voltage	24...28 V24...28 V AC/DC
Connections - Terminals	screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509035

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	UL 508, NEMA
Carbon Footprint Of The Distribution Phase [A4]	0.12268199827445428, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0016737318528761275, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0.8 kg CO2 eq., 0.8426300592264173
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bezel Material	metal
Compatibility Code	9001K
Contacts Material	silver alloy contacts
Device Short Name	9001K
Light Source	LED
Mounting Diameter	30 mm
Operator Additional Information	without guard
Positive Opening	without
Product Or Component Type	illuminated push-button
Range Of Product	Harmony 9001K
Shape Of Screw Head	cross slotted
Shock Resistance	50 gn IEC 60068-2-27
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	3 kg CO2 eq.
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Light Source Color	yellow
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; High voltage; 2020; Mexico, MX
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	49
[Ith] Conventional Free Air Thermal Current	10 A
[Uimp] Rated Impulse Withstand Voltage	2.5 kV IEC 60947-1
Cap/Operator Or Lens Colour	amber
Short-circuit Protection	10 A cartridge fuse IEC 60947-5-1
Package Weight(Lbs)	226.796 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Nema Degree Of Protection	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-03-26
Psr Version	PSR-0005-ed3-2023 06 06

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	2.7029368343322537
Environmental Disclosure	ENVPEP2503027EN
Ip Degree Of Protection	IP66 IEC 60529
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
