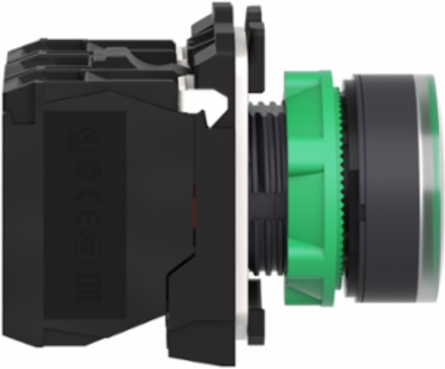

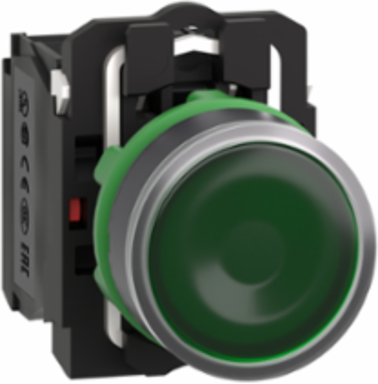

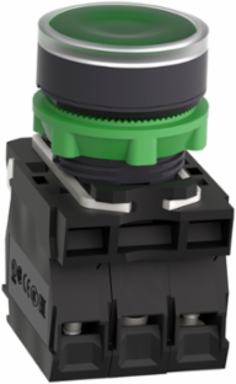

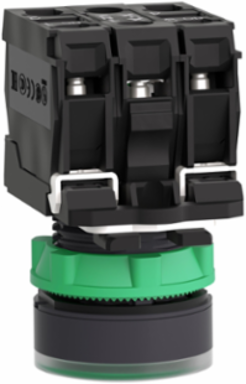

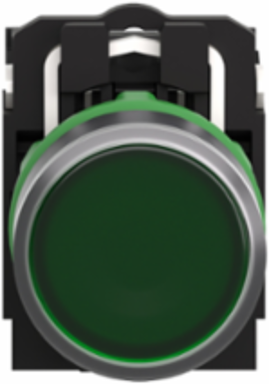

Schneider Electric XB5AW33G5 Harmony XB5 22 mm Illuminated Green Push Button, IP66, 110-120V AC

  • MPN: XB5AW33G5
  • PPN: SCH-XB5AW33G5
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $106.62

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony XB5, illuminated modular green push button operates with a spring return mechanism, is supplied with 110V to 120V AC, uses a universal LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Mexico, United States

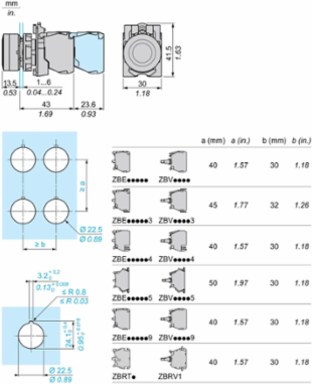

    Depth57 mm

    Physical Attributes

    Cap Operator Or Lens Color
    green

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Bezel Material
    dark grey plastic, dark grey plastic
    Electrical Durability
    1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Operating Force
    3.5 N NC changing electrical state, 3.8 N
    Certificate Agency
    CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
    [Us] Rated Supply Voltage
    AC 50/60 Hz, 110...120 V
    Carbon Footprint Of The Distribution Phase [A4]
    0.01614217468805704, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.015522281639928697
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    58 kg CO2 eq., 57.556179723502304
    Local Publishable Date
    2026-03-26
    Stocking Flag
    Y
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2404014EN
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Average Percentage Of Recycled Plastic Content
    22 %
    Compatibility Code
    XB5
    Contacts Material
    silver alloy (Ag/Ni)
    Contacts Usage
    standard contacts
    Device Short Name
    XB5
    Fixing Collar Material
    plastic
    Head Type
    standard
    Light Source
    universal LED
    Mounting Diameter
    22.5 mm
    Operator Additional Information
    with plain lens
    Overvoltage Category
    class II conforming to IEC 60536
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Repair Index
    A
    Range Of Product
    Harmony XB5
    Resistance To Electrostatic Discharge
    6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
    Resistance To High Pressure Washer
    7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity
    1
    Shape Of Signaling Unit Head
    round
    Signalling Type
    steady
    Supply Voltage Limits
    100-132 V AC
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Type Of Operator
    spring return
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Contacts Composition
    1 NO + 1 NC
    Pep Code
    ENVPEP2404014EN
    Pep Verification Date
    2024-06-09
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal
    42 mm
    [Ith] Conventional Free Air Thermal Current
    10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947-1
    Connections - Terminals
    screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
    Nbr. Of Units In Pkg.
    1
    Product Repair Index - Dam Document Id
    XB4BS8442-ENVREPAIR-A-EN
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Customizableno, 1
    Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
    Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

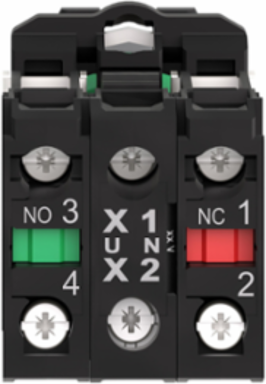

    Terminals Description Iso N°1(13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1294488413547237, 0.1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.39035294117647057
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee Product Category5
    Eoli Availability DisplayYes
    Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Average Percentage Of Recycled Metal Content13 %
    Bulb Baseintegral LED
    Contact Operationslow-break
    Contacts Type And Composition1 NO + 1 NC
    Current Consumption14 mA
    Electromagnetic Emissionclass B IEC 55011
    Gcr BridgeXB5AWCUST07
    Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    Mechanical Durability10000000 cycles
    Operating Travel1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
    Operator Profilegreen flush, unmarked
    Positive Openingwith IEC 60947-5-1 appendix K
    Product Or Component Typeilluminated push-button
    Protective TreatmentTH
    Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
    Resistance To Fast Transients2 kV IEC 61000-4-4
    ReturnabilityYes
    Service Life100000 h at rated voltage and 25 °C
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Software Versionv5.9.4
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint58 kg CO2 eq.
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Cap Operator Or Lens Colorgreen
    Supply Voltage Num 22 Supply Voltage Num110...120 V
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionHarmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 &amp; UL 508.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %38
    Width Nominal30 mm
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    Cap/Operator Or Lens Colourgreen
    Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)55.0 g
    Take-backNo
    Customs Code8536509033

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP69, IP69K, IP67
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    58.10764596236148
    Environmental Disclosure
    ENVPEP2404014EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2024-06-09
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
    Recycled Metal Content At Cr Level13 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2404014EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2404014EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    illuminated push-button
    Range Of ProductHarmony XB5

    ETIM

    ETIM 8
    EC001028
    ETIM 9EC001028

    Surge Protection And Filtering Attributes

    Surge Withstand
    1 kV IEC 61000-4-5

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    complete product
