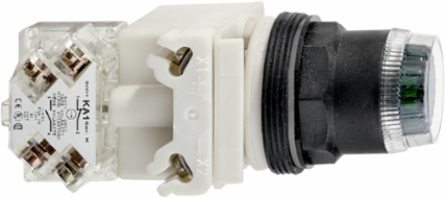

Schneider Electric 9001SK1L38LGG Harmony 9001SK Green Illuminated Push-Button 30mm, Spring Return, LED 120V
- MPN: 9001SK1L38LGG
- UPC: 785901040484
- PPN: SCH-9001SK1L38LGG
CAD
$214.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony 9001SK, modular illuminated flush green push button is supplied with a full guard. It has a double insulated plastic bezel, is supplied with a 110V AC/DC integral LED. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|
Physical Attributes
| Light Source Color | green |
|---|
Complementary Attributes
| Rated Breaking Capacity | 1.2 kA 600 V AC-15, 720 VA1.5 kA 480 V AC-15, 720 VA3 kA 240 V AC-15, 720 VA6 kA 120 V AC-15, 720 VA, 0.27 kA 250 V DC-130.55 kA 125 V DC-13, 0.1 kA 600 V DC-13 |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Operator Profile | flush, green flush, unmarked |
| [Icm] Rated Short-circuit Making Capacity | 12 kA 600 V AC-15, 7200 VA15 kA 480 V AC-15, 7200 VA30 kA 240 V AC-15, 7200 VA60 kA 120 V AC-15, 7200 VA, 0.27 kA 250 V DC-130.55 kA 125 V DC-13, 0.1 kA 600 V DC-13 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Bulb Base | BA 9s |
| Contacts Type And Composition | without contact block |
| Electrical Shock Protection Class | class II conforming to IEC 61140 |
| Light Source | Green LED |
| Mounting Diameter | 30 mm |
| Operator Additional Information | plastic guard |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | No |
| Shape Of Signaling Unit Head | octagonal |
| Sustainable Packaging | Yes |
| Type Of Operator | spring return |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2503027EN |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Cap/Operator Or Lens Colour | green |
| Short-circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Package Weight(Lbs) | 181.437 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL 508, NEMA |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Bezel Material | plastic |
| Compatibility Code | 9001SK |
| Device Short Name | 9001SK |
| Light Block Supply | direct 120 V AC/DC |
| Mechanical Durability | 5000000 cycles |
| Operating Position | any position |
| Positive Opening | without |
| Product Or Component Type | head for illuminated push-button |
| Range Of Product | Harmony 9001SK |
| Shape Of Screw Head | cross slotted |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Tightening Torque | 0.8-0.8 N.m IEC 60947-1 |
| Vibration Resistance | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Light Source Color | green |
| [Ie] Rated Operational Current | 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| [Us] Rated Supply Voltage | 120 V120 V AC/DC |
| Connections - Terminals | screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509035 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP65/IP66 |
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503027EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2503027EN |
General Attributes
| Product Or Component Type | head for illuminated push-button |
|---|
| Range Of Product | Harmony 9001SK |
|---|
ETIM
| ETIM 8 | EC001028 |
|---|
| ETIM 9 | EC001028 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | basic element |
|---|
