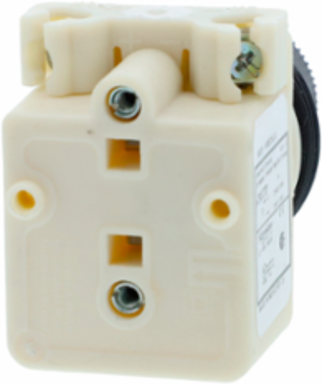

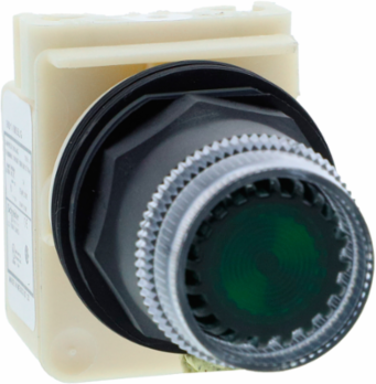

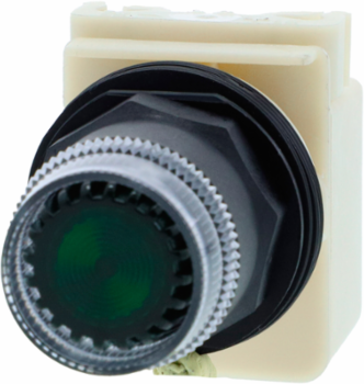

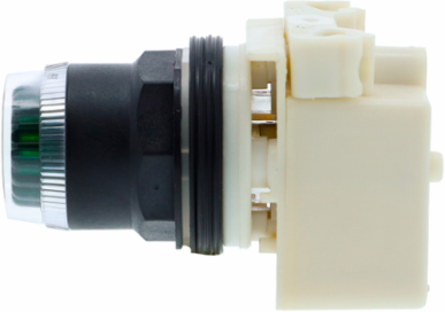

Schneider Electric 9001K1L35LGG Harmony 9001K 30mm Green LED Illuminated Push Button, IP66, Spring Return

MPN: 9001K1L35LGG
UPC: 785901681311
PPN: SCH-9001K1L35LGG

$216.29

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony 9001K, modular illuminated flush green push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Physical Attributes

Light Source Color	green

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Operator Profile	flush, red flush, unmarked
Local Data Status	Publishable
Return Indicator	N
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bezel Material	metal
Compatibility Code	9001K
Device Short Name	9001K
Light Block Supply	direct 24...28 V AC/DC
Mechanical Durability	5000000 cycles
Operating Position	any position
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TC
Returnability	No
Shock Resistance	50 gn IEC 60068-2-27
Type Of Operator	spring return
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2503027EN
Cap/Operator Or Lens Colour	green
Package Weight(Lbs)	226.796 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	UL 508, NEMA
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Bulb Base	BA 9s
Contacts Type And Composition	without contact block
Electrical Shock Protection Class	class II conforming to IEC 61140
Light Source	Green LED
Mounting Diameter	30 mm
Operator Additional Information	plastic guard
Product Or Component Type	head for illuminated push-button
Range Of Product	Harmony 9001K
Shape Of Signaling Unit Head	round
Sustainable Packaging	Yes
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Light Source Color	green
[Us] Rated Supply Voltage	24...28 V
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509031

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP65/IP66
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
