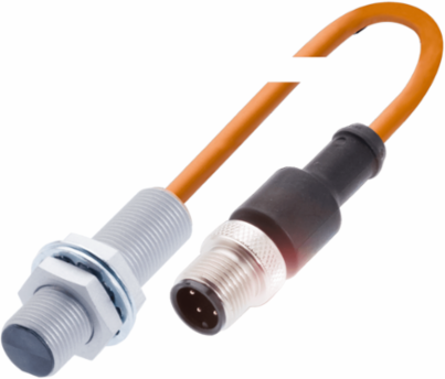

Balluff BES M12MG-GSC30B-BP00,3-GS04-101 Inductive 2-wire sensors BES M12MG-GSC30B-BP00,3-GS04-101
- MPN: BES M12MG-GSC30B-BP00,3-GS04-101
- PPN: BAL-BES0326
CAD
$223.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Inductive 2-wire sensors BES M12MG-GSC30B-BP00,3-GS04-101
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- Ø 12 x 43 mm
- Installation
- for flush mounting
- Switching output
- polarized Normally open (NO)
- Housing material
- Brass
- Material sensing surface
- LCP/PTFE
- Operating voltage Ub
- 10-30 VDC
- IP rating
- IP67
StyleM12x1
Range3 mm
Switching frequency1300 Hz
Surface protectionNickel-free coated
ConnectionCable with connector, M12x1-Male, 4-pin, 0.30 m, PUR
Ambient temperature-25-70 °C
Approval/ConformityCE, cULus, EAC, WEEE
