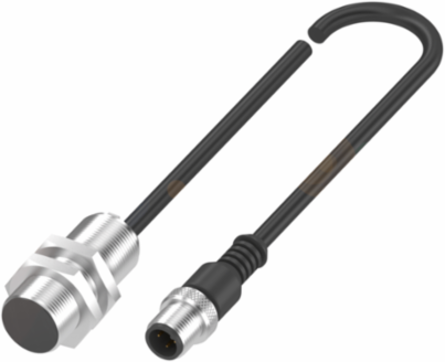

Balluff BES M18MG-GSC70B-BP00,3-GS04 Inductive 2-wire sensors BES M18MG-GSC70B-BP00,3-GS04
- MPN: BES M18MG-GSC70B-BP00,3-GS04
- PPN: BAL-BES006C
CAD
$98.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Inductive 2-wire sensors BES M18MG-GSC70B-BP00,3-GS04
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- Ø 18 x 46 mm
- Installation
- for flush mounting
- Switching output
- polarized Normally open (NO)
- Housing material
- Brass
- Material sensing surface
- PA 12
- Operating voltage Ub
- 10-36 VDC
- IP rating
- IP67
StyleM18x1
Range7 mm
Switching frequency600 Hz
Surface protectionNickel-free coated
ConnectionCable with connector, M12x1-Male, 4-pin, 0.30 m, PUR
Ambient temperature-25-70 °C
Approval/ConformityCE, cULus, EAC, WEEE
