Balluff

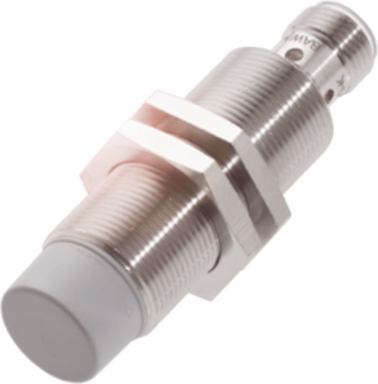

Balluff BAW M18MG-UAC16F-S04G-K Inductive distance sensors BAW M18MG-UAC16F-S04G-K

Inductive distance sensors BAW M18MG-UAC16F-S04G-K
  • MPN: BAW M18MG-UAC16F-S04G-K
  • PPN: BAL-BAW0029

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$590.82/ EA

Specifications

Specifications

Dimension
Ø 18 x 65 mm
Installation
non-flush
Analog output
Analog, voltage 0…10 VAnalog, Temperature
Repeat accuracy
±200 µm
Housing material
Brass
Material sensing surface
PBT
Operating voltage Ub
15-30 VDC
IP rating
IP67
StyleM18x1
Range4-16 mm
Output characteristicfalling on approach
Non-linearity max.±360 µm
Surface protectionnickel plated
ConnectionConnector, M12x1-Male, 4-pin
Ambient temperature10-60 °C
Approval/ConformityCE, cULus, EAC, WEEE
