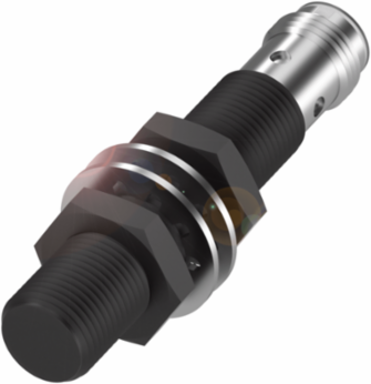

Balluff BES M12EI-PSC40B-S04G-S03 Inductive Sensor, 4 mm Range, Ø 12 x 65 mm, IP67, 60 bar

Inductive Sensor, 4 mm Range, Ø 12 x 65 mm, IP67, 60 bar
  • MPN: BES M12EI-PSC40B-S04G-S03
  • PPN: BAL-BES056A

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$210.61/ EA

Description

Engineered for precision and durability, the inductive full-metal sensors from Balluff are a reliable choice for various automation and control applications. With a robust stainless steel housing coated with PTFE, these sensors are designed for flush mounting and provide a sensing range of up to 4 mm. They operate efficiently within a voltage range of 10-30 VDC and are rated IP67, ensuring protection against dust and water ingress. Capable of withstanding high pressure up to 60 bar and extreme temperatures from -25 to 70 °C, these sensors are ideal for demanding industrial environments. The M12x1 connection and PNP normally open switching output enhance their versatility, making them a dependable component in your automation systems.

Specifications

Operating Voltage
10-30 VDC
Switching Frequency
500 Hz
Rated Operating Current
200 mA
No-load Current Max
15 mA (damped)
Output Resistance
33 kOhm + D
Repeat Accuracy Max
5 % of Sr
Temperature Drift Max
10 % of Sr
Switching Output
PNP Normally open (NO)
Dimensions
Ø 12 x 65 mm
Connection
M12x1 Male, 4-pin
Material Sensing Surface
Stainless steel, coated, PTFE
Contamination Scale
3
Short-circuit Protection
Yes
Pressure Rating60 bar
Sensing Range4 mm
Rated Short Circuit Current100 A
Load Capacitance Max1 µF
Rated Insulation Voltage75 V DC
Hysteresis Max15 % of Sr
Tolerance Sr±15 %
Operating Temperature Range-25 to 70 °C
InstallationFlush mounting
Housing MaterialStainless steel, coated, PTFE
Ingress ProtectionIP67
Polarity Reversal ProtectionYes
Approval/ConformityCE, cULus, EAC, WEEE
