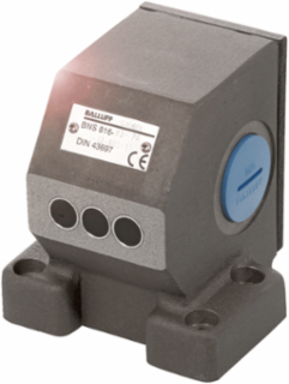

Balluff BNS 816-B02-PA-16-605-11 Inductive Multi-Position Limit Switches, 2 mm Range, Aluminum Housing, IP67
- MPN: BNS 816-B02-PA-16-605-11
- PPN: BAL-BNS03EF
CAD
$1012.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Inductive row-position counters offer the combination of advantages of an inductive sensor with those of our mechanical housing-based line of products They are distinguished by a compact design and high switching distances. The coordinated transmission frequencies of the inductive switching elements allow for a tight sequential arrangement. The switching elements are equipped with LEDs. The switching function is thus recognizable on the housing cover.
Documentation & Downloads
Specifications
Key Specifications
- Housing material
- Aluminum
- Operating principle
- 1-2. Switch position: Inductive
- Switching frequency
- 1-2. Switch position: 1500 Hz
- Rated operating voltage Ue
- 1-2. Switch position: 24 V DC
- Connection type
- 1-2. Switch position: Screw terminal
- IP rating
- IP67
VersionInductive
Range2 mm
Continuous current1-2. Switch position: 0.2 A
Installationparallel
Ambient temperature-25-70 °C
Approval/ConformityCE
