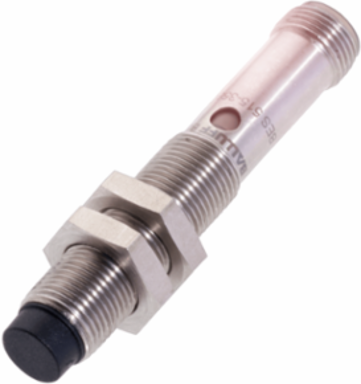

Balluff BES 515-356-S4-C Inductive standard sensors with preferred types BES 515-356-S4-C
Balluff BES 515-356-S4-C Inductive standard sensors with preferred types BES 515-356-S4-C
- MPN: BES 515-356-S4-C
- PPN: BAL-BES02FC
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$159.59/ EA
Description
Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.
Specifications
Specifications
- Dimension
- Ø 12 x 70 mm
- Installation
- non-flush
- Switching output
- PNP Normally open (NO)
- Housing material
- Stainless steel
- Connection
- Connector, M12x1-Male, 4-pin
- Ambient temperature
- -25-70 °C
- Approval/Conformity
- CE, cULus, EAC, WEEE
StyleM12x1
Range4 mm
Switching frequency1200 Hz
Material sensing surfacePA 12
Operating voltage Ub10-30 VDC
IP ratingIP68
