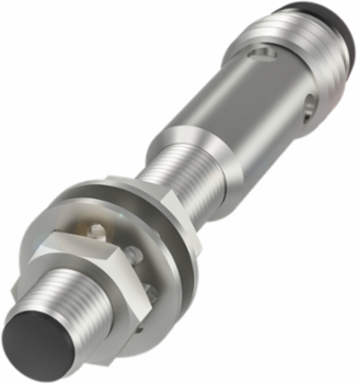

Balluff BES 516-3005-G-E5-C-S49 Inductive standard sensors with preferred types BES 516-3005-G-E5-C-S49

Inductive standard sensors with preferred types BES 516-3005-G-E5-C-S49

Balluff BES 516-3005-G-E5-C-S49 Inductive standard sensors with preferred types BES 516-3005-G-E5-C-S49

MPN: BES 516-3005-G-E5-C-S49
PPN: BAL-BES00HF

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$195.95/ EA

Loading add to cart quantity...

Description

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Specifications

Specifications

Dimension: Ø 5 x 41 mm

Installation: for flush mounting

Switching output: PNP Normally open (NO)

Housing material: Stainless steel

Connection: Connector, M8x1-Male, 3-pin

Ambient temperature: -25-70 °C

Approval/Conformity: cULus, CE, EAC, WEEE

StyleM5x0.5

Range1.5 mm

Switching frequency5000 Hz

Material sensing surfacePBT

Operating voltage Ub10-30 VDC

IP ratingIP67
