Inductive Standard Sensor Ø 12 x 70 mm, IP68, Stainless Steel Housing
Balluff

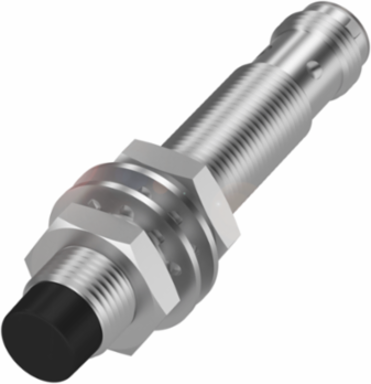

Balluff BES 516-356-S4-C Inductive Standard Sensor Ø 12 x 70 mm, IP68, Stainless Steel Housing

  • MPN: BES 516-356-S4-C
  • PPN: BAL-BES01H6

CAD

$140.64

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Description

Designed for precision and reliability in industrial automation, these inductive standard sensors from Balluff offer exceptional performance with a sensing range of 4 mm. Constructed with a robust stainless steel housing, they are built to withstand harsh environments, boasting an impressive IP68 rating that ensures protection against dust and water ingress. With a compact design of Ø 12 x 70 mm and a wide operating temperature range of -40 to 85 °C, these sensors are ideal for a variety of applications, providing a PNP Normally Open (NO) switching output and a high switching frequency of 2500 Hz. The M12x1 connector facilitates easy installation, making them a versatile choice for automation and control systems.

Documentation & Downloads

Specifications

Additional

Range
4 mm
Switching Frequency
2500 Hz
Rated Operating Distance
4 mm
Housing Material
Stainless Steel
IP Rating
IP68
Installation
non-flush
Ambient Temperature
-40 to 85 B0C
Style
M12x1
Rated Short Circuit Current
100 A
No-load Current Max, Damped
5 mA
Output Resistance
33 kA9 + D
Protection Against Device Mix-ups
Yes
Hysteresis Max
15 %
Temperature Drift Max
10 %
Operating Voltage10-30 V DC
Switching OutputPNP Normally Open (NO)
Assured Operating Distance3.2 mm
Material Sensing SurfacePBT
ConnectionConnector, M12x1 Male, 4-pin, A-coded
DimensionD8 12 x 70 mm
Approval/ConformityCE, cULus, EAC, WEEE
Rated Operating Current200 mA
Load Capacitance Max1 B5F
No-load Current Max, Undamped2 mA
Polarity Reversal ProtectedYes
Short-circuit ProtectionYes
Repeat Accuracy Max5 %
