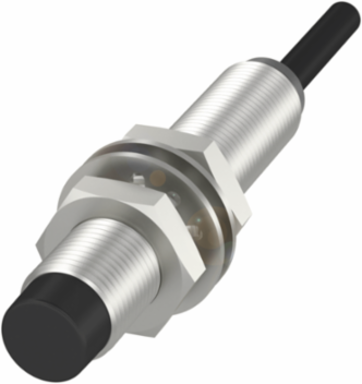

Inductive standard sensors with preferred types BES M12EI-PAC40F-BV03
Balluff

Balluff BES M12EI-PAC40F-BV03 Inductive standard sensors with preferred types BES M12EI-PAC40F-BV03

  • MPN: BES M12EI-PAC40F-BV03
  • PPN: BAL-BES0580

CAD

$177.20

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Documentation & Downloads

Specifications

Key Specifications

Dimension
Ø 12 x 63 mm
Installation
non-flush
Switching output
PNP NO/NC
Housing material
Stainless steel
Connection
Cable, 3 m, PVC
Ambient temperature
-40-85 °C
Approval/Conformity
cULus, CE, EAC, WEEE
StyleM12x1
Range4 mm
Switching frequency2500 Hz
Material sensing surfacePBT
Operating voltage Ub10-30 VDC
IP ratingIP68
