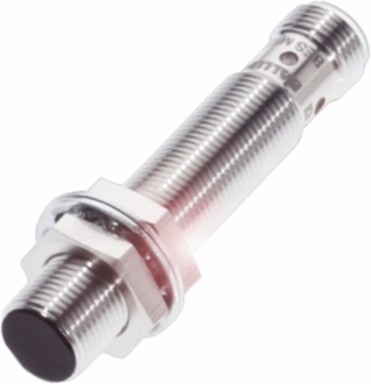

Balluff BES M12EI-PSC40B-S04G Inductive Sensor Ø 12 x 65 mm, PNP Normally Open, IP68
Balluff BES M12EI-PSC40B-S04G Inductive Sensor Ø 12 x 65 mm, PNP Normally Open, IP68
- MPN: BES M12EI-PSC40B-S04G
- PPN: BAL-BES02FU
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$144.93/ EA
Description
Engineered for precision and reliability, these inductive standard sensors from Balluff are designed to meet the demands of various automation and control applications. With a compact dimension of Ø 12 x 65 mm and a robust stainless steel housing, they are suitable for flush mounting and can operate effectively in challenging environments, thanks to their IP68 rating and a wide ambient temperature range of -25 to 85 °C. The sensors feature a PNP normally open switching output and can handle an operating voltage of 10-30 VDC, making them versatile for different setups. Additionally, with a switching frequency of 1000 Hz and a sensing range of 4 mm, these sensors are built to deliver reliable performance in industrial settings while conforming to CE, cULus, EAC, and WEEE standards.
Specifications
Specifications
- Dimension
- Ø 12 x 65 mm
- Installation
- for flush mounting
- Switching output
- PNP Normally open (NO)
- Housing material
- Stainless steel
- Connection
- Connector, M12x1-Male, 4-pin
- Ambient temperature
- -25-85 °C
- Approval/Conformity
- CE, cULus, EAC, WEEE
StyleM12x1
Range4 mm
Switching frequency1000 Hz
Material sensing surfaceLCP
Operating voltage Ub10-30 VDC
IP ratingIP68
