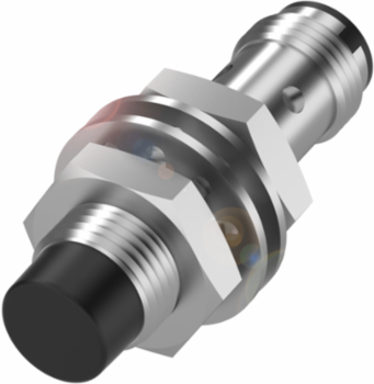

Inductive standard sensors with preferred types BES M12MD-POC80F-S04G
Balluff

Balluff BES M12MD-POC80F-S04G Inductive standard sensors with preferred types BES M12MD-POC80F-S04G

  • MPN: BES M12MD-POC80F-S04G
  • PPN: BAL-BES01PU

CAD

$78.20

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Documentation & Downloads

Specifications

Key Specifications

Dimension
Ø 12 x 45 mm
Installation
non-flush
Switching output
PNP Normally closed (NC)
Housing material
Brass
Material sensing surface
PBT
Operating voltage Ub
10-30 VDC
IP rating
IP68
StyleM12x1
Range8 mm
Switching frequency1000 Hz
Surface protectionNickel-free coated
ConnectionConnector, M12x1-Male, 3-pin
Ambient temperature-25-70 °C
Approval/ConformityCE, EAC, cULus, WEEE
