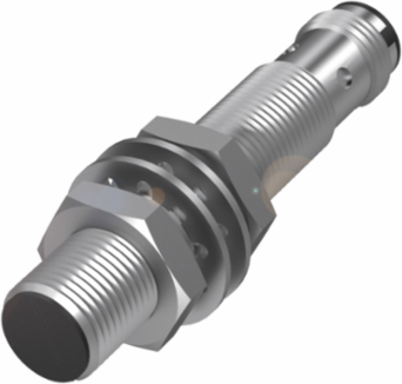

Inductive standard sensors with preferred types BES M12MI-PSC20B-S04G
Balluff

Balluff BES M12MI-PSC20B-S04G Inductive standard sensors with preferred types BES M12MI-PSC20B-S04G

  • MPN: BES M12MI-PSC20B-S04G
  • PPN: BAL-BES0060

CAD

$57.38

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Documentation & Downloads

Specifications

Key Specifications

Dimension
Ø 12 x 65 mm
Installation
for flush mounting
Switching output
PNP Normally open (NO)
Housing material
Brass
Material sensing surface
PBT
Operating voltage Ub
10-30 VDC
IP rating
IP68
StyleM12x1
Range2 mm
Switching frequency3500 Hz
Surface protectionNickel-free coated
ConnectionConnector, M12x1-Male, 4-pin
Ambient temperature-25-70 °C
Approval/ConformityCE, cULus, EAC, WEEE
