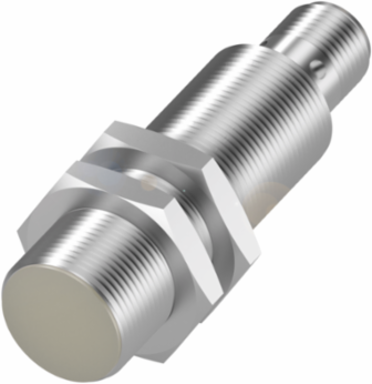

Inductive standard sensors with preferred types BES M18EI-POC80B-S04G
Balluff

Balluff BES M18EI-POC80B-S04G Inductive standard sensors with preferred types BES M18EI-POC80B-S04G

  • MPN: BES M18EI-POC80B-S04G
  • PPN: BAL-BES02FZ

CAD

$124.18

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Documentation & Downloads

Specifications

Key Specifications

Dimension
Ø 18 x 65 mm
Installation
for flush mounting
Switching output
PNP Normally closed (NC)
Housing material
Stainless steel (1.4404)
Connection
Connector, M12x1-Male, 4-pin
Ambient temperature
-40-85 °C
Approval/Conformity
cULus, CE, EAC, WEEE
StyleM18x1
Range8 mm
Switching frequency700 Hz
Material sensing surfacePBT
Operating voltage Ub10-30 VDC
IP ratingIP68
