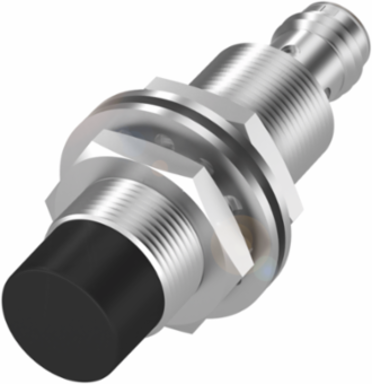

Inductive standard sensors with preferred types BES M18MG-NSC20F-S04G
Balluff

Balluff BES M18MG-NSC20F-S04G Inductive standard sensors with preferred types BES M18MG-NSC20F-S04G

  • MPN: BES M18MG-NSC20F-S04G
  • PPN: BAL-BES05EZ

CAD

$216.30

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Documentation & Downloads

Specifications

Key Specifications

Dimension
Ø 18 x 66 mm
Range
20 mm
Switching frequency
400 Hz
Surface protection
Nickel-free coated
Connection
Connector, M12x1-Male, 3-pin
Ambient temperature
-25-70 °C
Approval/Conformity
CE, cULus, EAC, WEEE
StyleM18x1
Switching outputNPN Normally open (NO)
Housing materialBrass
Material sensing surfacePBT
Operating voltage Ub10-30 VDC
IP ratingIP68
