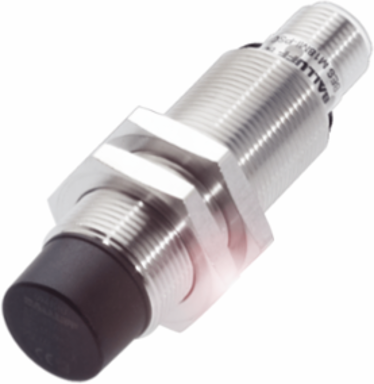

Inductive standard sensors with preferred types BES M18MG-PSC16F-S04G
Balluff

Balluff BES M18MG-PSC16F-S04G Inductive standard sensors with preferred types BES M18MG-PSC16F-S04G

  • MPN: BES M18MG-PSC16F-S04G
  • PPN: BAL-BES03RM

CAD

$66.72

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Documentation & Downloads

Specifications

Additional

Operating Voltage
10-30 VDC
Switching Frequency
430 Hz
Connection
M12x1 Male, 3-pin
Dimension
Ø18 x 65 mm
Installation
Non-flush
Surface Protection
Nickel-free coated
Approval/Conformity
CE, cULus, EAC, WEEE
Range16 mm
Switching OutputPNP Normally open (NO)
SizeM18x1
Ambient Temperature-25 to 70 C
Housing MaterialBrass
Material Sensing SurfacePBT
IP RatingIP67
