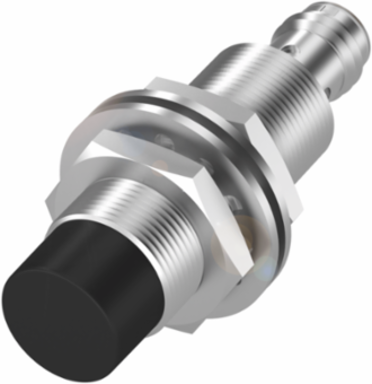

Balluff BES M18MG-PSC20F-S04G Inductive standard sensors with preferred types BES M18MG-PSC20F-S04G
Balluff BES M18MG-PSC20F-S04G Inductive standard sensors with preferred types BES M18MG-PSC20F-S04G
- MPN: BES M18MG-PSC20F-S04G
- PPN: BAL-BES05EY
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$181.20/ EA
Description
Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.
Specifications
Specifications
- Dimension
- Ø 18 x 66 mm
- Range
- 20 mm
- Switching frequency
- 400 Hz
- Surface protection
- Nickel-free coated
- Connection
- Connector, M12x1-Male, 3-pin
- Ambient temperature
- -25-70 °C
- Approval/Conformity
- CE, cULus, EAC, WEEE
StyleM18x1
Switching outputPNP Normally open (NO)
Housing materialBrass
Material sensing surfacePBT
Operating voltage Ub10-30 VDC
IP ratingIP68
