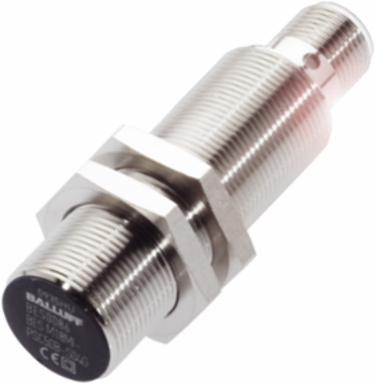

Inductive standard sensors with preferred types BES M18MI-PSC50B-S04G
Balluff

Balluff BES M18MI-PSC50B-S04G Inductive standard sensors with preferred types BES M18MI-PSC50B-S04G

  • MPN: BES M18MI-PSC50B-S04G
  • PPN: BAL-BES0086

CAD

$61.18

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Documentation & Downloads

Specifications

Key Specifications

Dimension
Ø 18 x 65 mm
Installation
for flush mounting
Switching output
PNP Normally open (NO)
Housing material
Brass
Material sensing surface
PA 12
Operating voltage Ub
12-30 VDC
IP rating
IP68
StyleM18x1
Range5 mm
Switching frequency700 Hz
Surface protectionnickel plated
ConnectionConnector, M12x1-Male, 3-pin
Ambient temperature-25-70 °C
Approval/ConformityCE, cULus, EAC, WEEE
