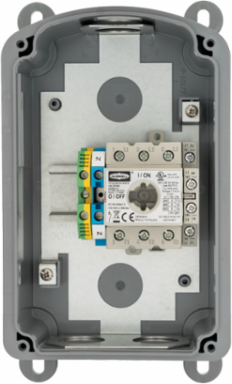

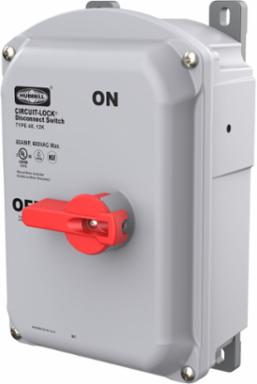

Hubbell Wiring Device-Kellems HBLDS60VFD Industrial Grade 3 Pole Disconnect Switch, 60A 600V AC, IP69k, NEMA Type 4X
- MPN: HBLDS60VFD
- UPC: 783585763248
- PPN: HBL-HBLDS60VFD
- UNSPSC: 39122205
CAD
$1095.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 60A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top enclosure, HBLAC2 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A
Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
- IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
- Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
- Product rating are permanently laser-marked and will not wash off
- Factory installed HBLAC2 auxiliary contact is "Break Before Main Break", 1 set of N/O contacts for VFD applications
Specifications
Additional
- Amperage
- 60A
- Poles
- 3
- Operating Temperature
- -40 C to 75 C continuous without impact
- Operating Cycles
- 10,000 minimum
- Height
- 5.94 in
- Hub Size
- 1/4 in
- Mounting Method
- External fully adjustable feet
- Material
- UV stabilized non-metallic
- Enclosure Type
- IP69k, UL Type 4X, 12
- Handle Color
- Red
- Auxiliary Contact
- HBLAC2, 1 set N/O
- Shape
- Rounded Top
- Class Code
- A16
- Type
- Disconnect Switches
- Color
- Gray
Voltage600V AC
Horsepower - Maximum50
Dielectric Strength3000V AC minimum
Current InterruptingCertified full rated current & voltage
Width8.75 in
Weight3.36 lb
Wire Size#2 to #10 AWG
Mounting Hardware MaterialStainless Steel
Ingress ProtectionIP69k, UL Type 4X, 12
Handle LockableYes, OFF position
CertificationcULus, NSF, CE, UL 508, UL 60947-4-1A
StyleHeavy Duty
Sub Class CodeA16A260
Country of OriginPL
Environmental ConditionsIndoor and Outdoor
