Schneider Electric RSB1A160JD Harmony Interface Plug-in Relay, 16A, 1 C/O, 12V DC, IP40
Schneider Electric RSB1A160JD Harmony Interface Plug-in Relay, 16A, 1 C/O, 12V DC, IP40
- MPN: RSB1A160JD
- PPN: SCH-RSB1A160JD
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$10.28/ EA
Description

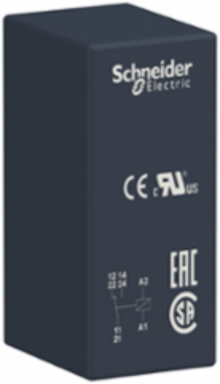

This Harmony RSB interfacing plug-in relay has a control coil voltage of 12V DC and has 1 changeover contact single pole double throw with a rating of 16A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0
Specifications
Environment
- Product Certifications
- EAC || UL || CSA
- Ambient Air Temperature For Operation
- -40-85 °C DC)
- Dielectric Strength
- 1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
- Ip Degree Of Protection
- IP40 IEC 60529
StandardsCSA C22.2 No 14 || IEC 61810-1 || UL 508
Shock Resistance10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
Vibration Resistance+/- 1 mm 10-55 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406006EN
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Maximum Switching Capacity
- 4000 VA/448 W
- [Ue] Rated Operational Voltage
- 8.4...18 V DC
- Protection Category
- RT I
- Contacts Material
- silver alloy (AgNi)
- Net Weight
- 0.014 kg
- Maximum Switching Voltage
- 300 V DC IEC
- Device Presentation
- complete product
- Average Coil Consumption
- 0.45 W DC
- Sale Per Indivisible Quantity
- 10
- Minimum Switching Current
- 10 mA
- Mechanical Durability
- 30000000 cycles
- Operating Time
- 20 ms operating || 20 ms reset
- Drop-Out Voltage Threshold
- >= 0.1 Uc DC
Safety Reliability DataB10d = 100000
Operating Rate<= 600 cycles/hour under load || <= 18000 cycles/hour no-load
Test Levelslevel A group mounting
Shape Of Pinflat (PCB type)
[Uimp] Rated Impulse Withstand Voltage3.6 kV IEC 61000-4-5
Average Resistance360 Ohm AC 20 °C +/- 10 %
Switching Voltage12 V
[Ie] Rated Operational Current16 A AC-1/DC-1) NO IEC || 8 A AC-1/DC-1) NC IEC
[Ui] Rated Insulation Voltage400 V IEC 60947
Electrical Durability100000 cycles, 16 A 250 V, AC-1 NO || 100000 cycles, 8 A 250 V, AC-1 NC
Operating Positionany position
Load Current16 A 250 V AC || 16 A 28 V DC
Minimum Switching Capacity120 mW 10 mA, 12 V
Specifications
- [Uc] Control Circuit Voltage
- 12 V DC
- Product Or Component Type
- plug-in relay
- Control Type
- without push-button
- Contacts Type And Composition
- 1 C/O
- Device Short Name
- RSB
Range Of ProductHarmony Electromechanical Relays
Status Ledwithout
Series Nameinterface relay
Contact Operationstandard
[Ithe] Conventional Enclosed Thermal Current16 A -40-40 °C
