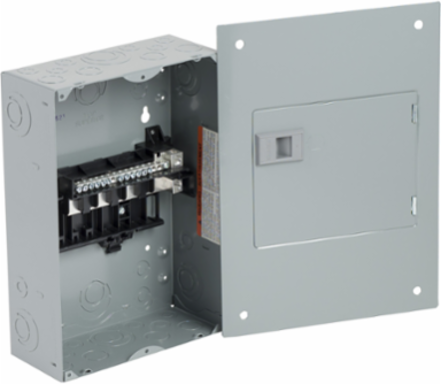

Square D QO816L100DTF Load Center 1 Phase, 8 Spaces, 16 Circuits, 100A, NEMA 1
Square D QO816L100DTF Load Center 1 Phase, 8 Spaces, 16 Circuits, 100A, NEMA 1
- MPN: QO816L100DTF
- UPC: 785901804444
- PPN: SCH-QO816L100DTF
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$301.60/ EA
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, door flush cover, and is CSA rated.
Specifications
- Amperage
- 100 A
- Short-Circuit Current Rating
- 10 kA
- Number of Spaces
- 8
- Height
- 319 mm (12.56 in)
- Load Center Type
- Fixed Mains (lugs)
- Wire Size
- AWG 4 to AWG 1 aluminum/copper
- Material
- Tin plated aluminum busbar
- Surface Finish
- Baked enamel gray
- Wiring Configuration
- 3-wire
- Cover Type
- Flush cover with door
- Ambient Air Temperature for Operation
- -5 °C to 40 °C (23 °F to 104 °F)
Voltage120/240 V AC
Number of Circuits16
Phase1 phase
Width226 mm (8.90 in)
Electrical Connectionlugs
Tightening Torque50 lb.in (main lugs)
Enclosure MaterialWelded sheet steel
Enclosure TypeNEMA 1 indoor
Ground BarFactory installed
Product CertificationscULus
Country of OriginMexico
