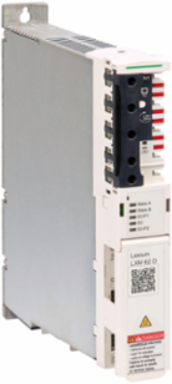

Schneider Electric LXM62DD15D21000 Lexium 62 Double Drive 15 A, 5 A Output Current, 2.4 kW Power, IP20
- MPN: LXM62DD15D21000
- PPN: SCH-LXM62DD15D21000
- UNSPSC: 32151703
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Lexium 62 & Motors range, an offer of servo drives. The single drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 24VDC, a continuous output current of 5A at 4kHz and a continuous power of 2.4kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 3kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets IEC 61508, EN/ISO 13849-1, EN 61800-5-1, IEC 62061, EN 62061, CSA C22.2 No 14 and EN 61800-5-2 standards. This product is compatible with servo motor SH3 (70mm, 2 motor stacks), servo motor SH3 (70 m, 3 motor stacks), servo motor SH3 (100mm, 1 motor stack). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions.
Features
- Universal, compact servo drives for multiaxis solutions
- Modular design
- Safety input inverter enable
- Safe drives with advanced safety functionality
- Easy installation, commissioning and maintenance
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France, Indonesia, Philippines, United States |
|---|
| Depth | 270 mm |
|---|
Communications & Management Attributes
| Communication Interface | SERCOS III, Integrated |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 400 V - 10...10 %)three phase, - 10...10 %)three phase, - 10...10 %)single phase, 230 V |
|---|---|
| Maximum Ambient Air Temperature For Operation | 55.0 °C |
| Maximum Operational Altitude | 3000.0 m |
| Maximum In Rated Current | 5.0 A |
| Line Rated Current | 5.0 A |
|---|---|
| Maximum Current Irms | 15.0 A |
| Minimum Ambient Air Temperature For Operation | 5.0 °C |
Important Information Attributes
| Persona Type Ids | EU, OM |
|---|---|
| Electrical Connection | terminal 0.2...15 mm², 24 AWG...16 AWG CN4), terminal 0.5...16 mm², 20 AWG...6 AWG CN5), terminal 0.75...16 mm², 18 AWG...6 AWG CN6), terminal 0.2...6 mm², 24 AWG...10 AWG CN7) |
| Supply Voltage | 208-360 V three phase, 380-480 V three phase |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Continuous Power | 2.4 kW |
| Derating Altitude Start | 1000.0 m |
| Derating Temperature Start | 40.0 °C |
| Environmental Characteristic | 3K3 conforming to IEC 60721-3-3 |
| Overvoltage Category | III |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | PacDrive 3 |
| Safety Function | STO (safe torque off) |
| Supply Frequency | 50/60 Hz - 5...5 % |
| Switching Frequency | 8 kHz |
| Vibration Resistance | 10 m/s² conforming to IEC 60721-3-3 |
| Width Nominal | 44.5 mm |
| Customs Code | 8504404000 |
| Persona Type Names | End User, Original Equipment Manufacturer |
|---|---|
| Nominal Voltage | 230 V three phase, 400 V three phase |
| Certificate Agency | UL, EAC, CSA, CE, TÜV |
| Local Publishable Date | 2026-01-12 |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1406012EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Component Name | LXM62 |
| Derating Altitude Scale | 80.0 m |
| Derating Temperature Scale | 70.0 °C |
| Device Short Name | LXM 62 |
| Nominal Power | 2.4 kW |
| Phase | three phase |
| Product Or Component Type | double drive |
| Returnability | Yes |
| Shock Resistance | 100 m/s² IEC 60721-3-3 |
| Sustainable Packaging | No |
| Tightening Torque | CN1 2.5-2.5 N.m |
| Height Nominal | 310 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Product Compatibility | servo motor SH3 100 mm, 2 optimized in terms of torque and speedservo motor SH3 100 mm, 3 optimized in terms of high torque, servo motor MH3 70 mm, 3 optimized in terms of torque and speed, servo motor MH3 100 mm, 1 optimized in terms of torque and speed, servo motor SHSservo motor SH3 70 mm, 2 optimized in terms of torque and speed, servo motor SH3 70 mm, 3 optimized in terms of torque and speedservo motor SH3 100 mm, 1 optimized in terms of torque and speed, servo motor SH3 100 mm, 2 optimized in terms of high torque, servo motor SH3 140 mm, 1 optimized in terms of high torque, servo motor MH3 70 mm, 2 optimized in terms of torque and speed |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1406012EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1406012EN |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | 5-55 °C |
| Environmental Disclosure | ENVPEP1406012EN |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-85 % |
General Attributes
| Phase | three phase |
|---|---|
| Range Of Product | PacDrive 3 |
| Product Or Component Type | double drive |
|---|
ETIM
| ETIM 8 | EC001857 |
|---|---|
| ETIM 10 | EC001857 |
| ETIM 9 | EC001857 |
|---|
Output Attributes
| Output Current 3s Peak | 15 A 4 kHz, 15.0 A |
|---|---|
| Discrete Output Voltage | 24 V DC |
| Continuous Output Current | 5 A 4 kHz |
|---|---|
| Number Of Outputs | 2 digital |
Input Attributes
| Number Of Inputs | 2 digital, 2 touch probe |
|---|
| Discrete Input Voltage | 24 V DC for - 20...25 % |
|---|
