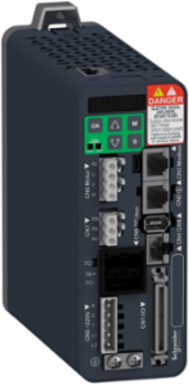

Schneider Electric LXM28EU01M3X Lexium28 EtherCAT drive, 100W, 1/3 phase 230V
Schneider Electric LXM28EU01M3X Lexium28 EtherCAT drive, 100W, 1/3 phase 230V
- MPN: LXM28EU01M3X
- PPN: SCH-LXM28EU01M3X
- UNSPSC: 39122003
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1769.75/ EA
Specifications
Communications & Management Attributes
- Communication Interface
- EtherCAT, Integrated
Complementary Attributes
- US Rated Supply Voltage
- 200...240 V - 10...15 %)three phase, 200...240 V - 20...15 %)single phase
- Maximum In Rated Current
- 0.9 A
Maximum Current IRMS2.7 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Connection
- spring terminal 0.82...1 mm², AWG 18 L1-L2), spring terminal 0.82...1 mm², AWG 18 R, S, T), spring terminal 0.82...1 mm², AWG 18 U, V, W, PE), spring terminal 0.82...1 mm², AWG 18 PA/+, PBe)
- Line Current
- 1.2 A 239.2 % 220 V, single phase, 1.2 A 212.7 % 220 V, three phase
- Nominal Voltage
- 220 V single phase, 220 V three phase
- Safety Level
- SIL 2 IEC 61800-5-2 2007, SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/AC, SIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/AC, SIL 2 IEC 62061 2012
- Supply Voltage
- 200-240 V single phase, 200-240 V three phase
- Supply Voltage Limits
- 200-255 V three phase, 170-255 V single phase
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.6 kg CO2 eq., 0.5760243243
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 21 kg CO2 eq., 21.4310675676
- Local Data Status
- Publishable
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1409001EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- WD Status
- 1 - GSC certified
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Continuous Power
- 100 W 220 V
- Device Short Name
- LXM28E
- Electromagnetic Compatibility
- conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
- Format Of The Drive
- compact housing
- Package Weight Lbs
- 1.272 kg
- Product Or Component Type
- motion servo drive
- Returnability
- No
- Shock Resistance
- 10 gn, type I IEC 60721-3-3
- Supply Frequency
- 50/60 Hz - 5...5 %
- Switching Frequency
- 16 kHz
- Transmission Rate
- 100 Mbit/s EtherCAT
- Vibration Resistance
- 3M4 3 mm 9-200 Hz)IEC 60721-3-3
- Maximum In Rated Current
- 0.9 A
- Pep Code
- ENVPEP1409001EN
- PCR Version
- PCR-ed3-EN-2015 04 02
- Functional Unit Description
- To control AC-servo motors BCH2 100% of the time for 10 years
- Product Kit Identifier
- N
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
EMC Filter Compatibilitytype 020, type 022
Network Number Of Phases3, 1
Protection Typeagainst reverse polarity inputs signal, against short-circuits outputs signal, overcurrent motor, overvoltage motor, undervoltage motor, overheating motor, overload motor, overspeed motor
Status Led1 LED (Red) DC bus energized, 1 LED (multi-colour) N.RUN, 1 LED (multi-colour) N.ERR, 2 LEDs (Yellow) Link (Link Status), 2 LEDs (Yellow) activity
Supply Voltage Descriptionsingle phase 220 V AC 50...60 Hz, three phase 220 V AC 50...60 Hz
Carbon Footprint Of The Distribution Phase A40.1625655405, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.012204973, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6422 kg CO2 eq., 421.5061348737
Local Publishable Date2026-01-12
ServiceabilityYes
Field Service DivisionIDIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Connector TypeRJ45 CN4)EtherCAT
Control Signal Typeservo motor encoder feedback CN2
Electrical Isolationbetween power and control
Field Weakeningfalse
Nominal Power0.1 kW 220 V 16 kHz
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Safety FunctionSTO (safe torque off), Integrated
Signalling Functionservo status and fault codes five 7-segment display units
Sustainable PackagingNo
Total Lifecycle Carbon Footprint444 kg CO2 eq.
Type Of Cableshielded motor cable 0-55 °C) copper
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Relationship TypeCompatible relationship
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional Unit Unitunité (unit)
Product ManagerJINGWEN HU
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption?, Pro-active compliance (Product out of EU RoHS legal scope)
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1409001EN
- IP Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1409001EN
- PCR Version
- PCR-ed3-EN-2015 04 02
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
Take BackNo
China ROHS RegulationX
Carbon Footprint443.6879972791
Environmental DisclosureENVPEP1409001EN
Packaging Made With Recycled CardboardNo
Product Compatibilityservo motor BCH2 40 mm, 2 100 W
Relative Humidity5-95 % without condensation
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- motion servo drive
Range Of ProductLexium 28
Output Attributes
- Discrete Output Number
- 5 logic output CN1)12...24 V DC, 1 pulse train output (PTO) CN1)
- Discrete Output Logic
- positive or negative CN1)
- Output Current 3s Peak
- 2.7 A 220 V
Continuous Output Current0.9 A 16 kHz
Discrete Output Voltage12...24 V DC
Surge Protection And Filtering Attributes
- EMC Filter Compatibility
- type 020, type 022
Input Attributes
- Discrete Input Number
- 8 programmable CN1), 2 fast capture CN1), 1 safety function STO CN9)
- Discrete Input Voltage
- 24 V DC logic
Discrete Input Logicpositive or negative CN1)
