Lexium28 EtherCAT drive, 2.0kW, 3 phase 230V
Schneider Electric

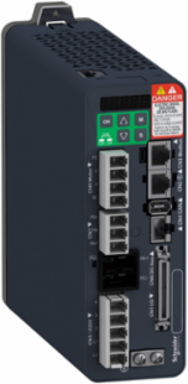

Schneider Electric LXM28EU20M3X Lexium28 EtherCAT drive, 2.0kW, 3 phase 230V

  • MPN: LXM28EU20M3X
  • PPN: SCH-LXM28EU20M3X
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2336.78

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW. The motion servo drive features EMC filter, integrated EtherCAT interface 7-segment display with 5 buttons. It is a motion servo drive with a rated supply voltage of 220V (three phase/single phase), an output current of 12A, nominal power of 2kW and continuous power of 2000W. It is furnished with spring terminal electrical connection and RJ45 connectors (CN4) for EtherCAT. There is an electrical isolation between power and control. It offers EtherCAT communication interfaces and physical interface of RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 62mm (width) x 184mm (depth) x 170mm (height). It weighs 1.7kg. It is suitable for machine control solutions. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (130mm, 4 motor stacks) at 2000W and servo motor (100mm, 2 motor stacks) at 2000W. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    China
    Depth184 mm

    Communications & Management Attributes

    Communication Interface
    EtherCAT, Integrated

    Complementary Attributes

    Line Rated Current
    12.0 A
    Maximum Leakage Current
    1.35 mA
    Maximum Current Irms36.0 A

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Electrical Connection
    spring terminal 3.3...4 mm², 12 AWG L1-L2), spring terminal 3.3...4 mm², 12 AWG R, S, T), spring terminal 3.3...4 mm², 12 AWG U, V, W, PE), spring terminal 3.3...4 mm², 12 AWG PA/+, PBe)
    Marking
    CE, cULus
    Safety Level
    SIL 2 IEC 61800-5-2 2007SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/ACSIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/ACSIL 2 IEC 62061 2012
    Certificate Agency
    CE, cULus
    Carbon Footprint Of The Distribution Phase [A4]
    0.2386875, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.01792, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    4 449 kg CO2 eq., 4449.2315869804
    Local Publishable Date
    2026-01-12
    Stocking Flag
    Y
    Device Type
    Motion - drive & motor
    Traceability
    Yes
    Average Life Duration
    15 year(s)
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    No
    Tier Id
    4
    Function Option Id
    ADVANCED
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    Continuous Power
    2000 W 220 V
    Device Short Name
    LXM28E
    Electrical Isolation
    between power and control
    Emc Filter
    without EMC filter
    Format Of The Drive
    compact housing
    Method Of Access
    slave
    Network Number Of Phases
    3
    Nominal Voltage
    220 V three phase
    Overvoltage Category
    III
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Range Of Product
    Lexium 28
    Safety Function
    STO (safe torque off), Integrated
    Signalling Function
    servo status and fault codes five 7-segment display units
    Supply Frequency
    50/60 Hz - 5...5 %
    Supply Voltage Description
    three phase 220 V AC 50...60 Hz
    Sustainable Packaging
    No
    Total Lifecycle Carbon Footprint
    4 482 kg CO2 eq.
    Type Of Cable
    shielded motor cable 0-55 °C) copper
    Vibration Resistance
    3M4 3 mm 9-200 Hz)IEC 60721-3-3
    Pep Code
    ENVPEP1409001EN
    Pep Verification Date
    2020-11-01
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To control AC-servo motors BCH2 100% of the time for 10 years
    Functional-unit Unit
    unité (unit)
    Energy Consumption On Product Lifetime In Kwh
    9081.158
    Energy Model - Installation [A5]
    Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity mix; AC; < 1kV; EU-27
    Width Nominal
    62 mm
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Air Pollution (M3) Manufacturing [A1-a3]
    3455
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
    342.8
    Materials For Energy Recovery (Kg) End Of Life [C1-c4]
    0.2122
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
    444.6875
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    17.1325
    Water Pollution (M3) Manufacturing [A1-a3]
    3052.125
    Water Pollution (M3) End Of Life [C1-c4]
    41.3175
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Emc Filter Compatibilitytype 022, type 020
    Protection Typeagainst reverse polarity inputs signalagainst short-circuits outputs signalovercurrent motor, overvoltage motor, undervoltage motor, overheating motor, overload motor, overspeed motor
    Status Led1 LED (Red) DC bus energized1 LED (multi-colour) N.RUN, 1 LED (multi-colour) N.ERR, 2 LEDs (Yellow) Link (Link Status), 2 LEDs (Yellow) activity
    [Us] Rated Supply Voltage200...240 V - 10...15 %)three phase200...240 V - 20...15 %)single phase, 230 V
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.8 kg CO2 eq., 0.84575
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]31 kg CO2 eq., 31.46625
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1409001EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2014
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier4
    Function OptionAdvanced
    Market SegmentationIndustrial
    Connector TypeRJ45 CN4)EtherCAT
    Control Signal Typeservo motor encoder feedback CN2
    Drive Voltage Drop Coefficient1
    Electromagnetic Compatibilityconducted emission - test level: level 3 category C3 conforming to IEC 61800-3
    Field Weakeningfalse
    Line Current8.7 A 137.1 % 220 V, three phase
    Network Frequency47.5...63 Hz
    Nominal Power2 kW 220 V 8 kHz
    Operating Positionvertical
    Phasethree phase
    Product Or Component Typemotion servo drive
    ReturnabilityNo
    Shock Resistance10 gn, type I IEC 60721-3-3
    Software VersionEIME v5.6.0.1
    Supply Voltage200-240 V three phase
    Supply Voltage Limits200-255 V three phase170-255 V single phase
    Switching Frequency8 kHz
    Transmission Rate100 Mbit/s EtherCAT
    Type Of Coolingnatural convection
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: China
    Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
    Height Nominal170 mm
    Maximum [In] Rated Current12.0 A
    Package Weight(Lbs)1.894 kg
    Warranty (In Months)18
    Air Pollution (M3) Installation [A5]0.7149
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]12.5575
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]427.55
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]3.112
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]411.725
    Water Pollution (M3) Distribution [A4]39.2525
    Customs Code8504404000

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -25-65 °C, -25-65 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    4481.8001944804
    Circularity Profile
    ENVEOLI1409001EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    No
    Product Compatibility
    servo motor BCH2 130 mm, 4 2000 Wservo motor 100 mm, 2 2000 Wservo motor 180 mm, 1 2000 W
    Relative Humidity
    5-95 % without condensation
    Pep Verification Date
    2020-11-01
    Type Of Verification For The Pep
    Independent internal review
    Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation0-55 °C
    Environmental DisclosureENVPEP1409001EN
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1409001EN
    Pcr VersionPCR-ed3-EN-2015 04 02

    General Attributes

    Phase
    three phase
    Range Of Product
    Lexium 28
    Product Or Component Typemotion servo drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Output Current 3s Peak
    220 V, 36 A
    Continuous Output Current
    12 A 8 kHz
    Discrete Output Number
    5 logic output CN1)12...24 V DC1 pulse train output (PTO) CN1)
    Output Voltage<= power supply voltage, <= power supply voltage
    Discrete Output Logicpositive or negative CN1)
    Discrete Output Voltage12...24 V DC

    Surge Protection And Filtering Attributes

    Emc Filter Compatibility
    type 022, type 020
    Emc Filterwithout EMC filter

    Input Attributes

    Discrete Input Number
    8 programmable CN1)2 fast capture CN1), 1 safety function STO CN9)
    Discrete Input Voltage
    24 V DC logic
    Discrete Input Logicpositive or negative CN1)
