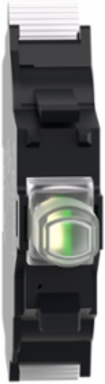

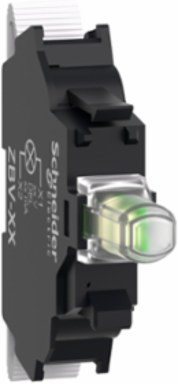

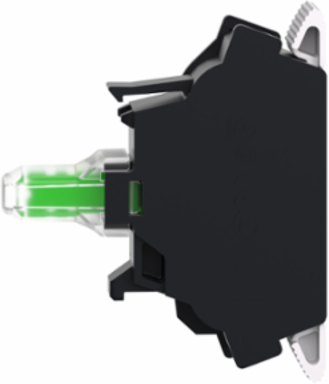

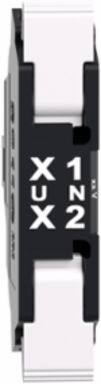

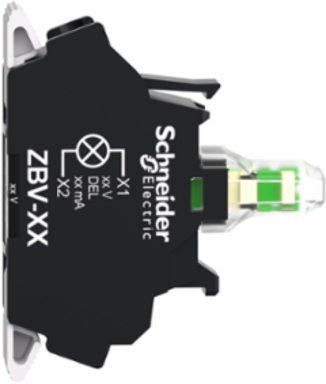

Schneider Electric ZBVG15 Harmony XB4/XB5 Light Block with Universal LED, 110-120 V AC, -40 to 70 °C
- MPN: ZBVG15
- PPN: SCH-ZBVG15
CAD
$58.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony ZB, white light block operates with an integral LED. It is supplied with 110V to 120V AC and uses spring terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB5 || Harmony XB4
- Light Block Supply
- direct
- Connections - Terminals
- push-in, <= 2 x 1.5 mm² with wire end ferrule EN 60947-1 || push-in, >= 1 x 0.34 mm² without wire end ferrule EN 60947-1
- Signalling Type
- steady
- Device Short Name
- ZBV
- Bulb Base
- integral LED
Light Sourceuniversal LED
Product Or Component Typelight block
Sale Per Indivisible Quantity5
Light Source Colourwhite
[Us] Rated Supply Voltage110...120 V AC 50/60 Hz
Complementary
- Mounting Of Block
- front mounting
- Net Weight
- 0.012 kg
- Current Consumption
- 14 mA
- Service Life
- 100000 h at rated voltage and 25 °C
- Cad Overall Width
- 35.6 mm
- Shape Of Screw Head
- flat Ø 4 mm
Electrical Composition CodeM1 || M2 || M3 || M4 || M5 || M6 || M10 || MF1 || P1 || P2 || PF1
Cad Overall Height14.8 mm
Device Presentationbasic element
Surge Withstand1 kV differential mode IEC 61000-4-5 || 2 kV common mode
Cad Overall Depth9.8 mm
Environment
- Product Certifications
- CSA || UL listed
- Ambient Air Temperature For Operation
- -40-70 °C
- Ip Degree Of Protection
- IP20 IEC 60529
- Resistance To Electrostatic Discharge
- 4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Electromagnetic Emission
- class B IEC 55011
[Us] Rated Supply Voltage110...120 V
StandardsCSA C22.2 No 14 || UL 508 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || JIS C8201-1
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
