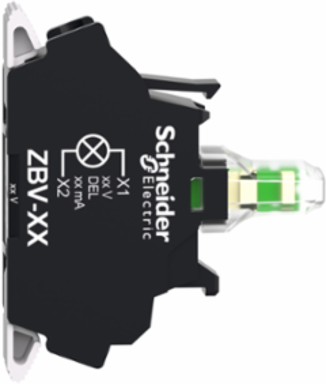

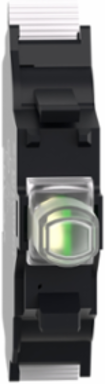

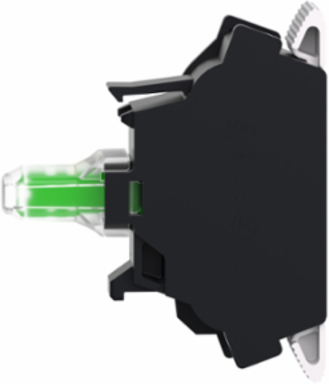

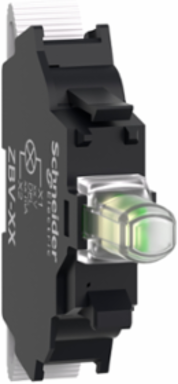

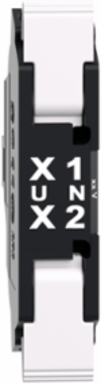

Schneider Electric ZBVB15 Harmony XB4/XB5 Light Block, 24V AC/DC, IP20, Universal LED, 0.012 kg

MPN: ZBVB15
PPN: SCH-ZBVB15
UNSPSC: 39122216

$58.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony white compact light block operates with a universal LED. It is supplied with 24V AC DC and uses push-in terminal connections. It has a plastic body. It is compatible with Harmony XB4 and Harmony XB5 units. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip-together assembly and connected with simple push-in terminal connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. This light block is sold by 5. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Features

Compatible with improved color heads
Universal LED block to be used for all colors
Quick and easy assembly and disassembly
Excellent mechanical connection with operator head
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
A large set of accessories to customize your panels
Tool-free installation enabled by push-in connections, ensuring effortless setup

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	16 g

Physical Attributes

Cad Overall Depth	9.8 mm
Cad Overall Width	35.6 mm

Cad Overall Height	14.8 mm

Complementary Attributes

Us Rated Supply Voltage	AC/DC 50/60 Hz, 24 V

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Range Of Product	Harmony XB4, Harmony XB5
Supply Voltage Limits	20.4-26.4 V DC, 20.4-26.4 V AC
Certificate Agency	EAC, IECEE CB Scheme, CCC, UL, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.018352488, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.1 kg CO2 eq., 0.1496500803
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	30 %
Compatibility Code	ZBV
Device Short Name	ZBV
Light Block Supply	direct
Mounting Of Block	front mounting
Product Or Component Type	light block
Resistance To Electromagnetic Fields	10 V/m IEC 61000-4-3
Resistance To Fast Transients	2 kV IEC 61000-4-4
Sale Per Indivisible Quantity	5
Software Version	v5.9.4
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections Terminals 8 Connections Terminals	push-in
Data Source	extrapolated product
Customs Code	8531809051
Functional Unit Description	Light blocks that attach to the back of a push button and serve as an indicator light. When the push button is pressed, the light blocks turn on and illuminate through the button head with a 30% utilisation rate and power consumption is 4.56W, and the product has a life of 10 years while adhering to standards IEC 61000-4-5 and IEC 60947-5-5.
Functional Unit Unit	Unit
Recyclability Potential In %	15

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Signalling Type	steady, steady
Light Source Color	white, white
Carbon Footprint Of The Distribution Phase A4	0.0055871589, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.012806549
Carbon Footprint Of The Use Phase B2 B3 B4 B6	5 kg CO2 eq., 4.9328526316
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2302007EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	0627
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	10 %
Bulb Base	integral LED
Current Consumption	15 mA
Electromagnetic Emission	class B IEC 55011
Light Source	universal LED
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Resistance To Electrostatic Discharge	4 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
Returnability	Yes
Service Life	100000 h at rated voltage and 25 °C
Supply Voltage	24 V
Total Lifecycle Carbon Footprint	5 kg CO2 eq.
Connections Terminals	push-in, = 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	5.1192489077
Environmental Disclosure	"ENVPEP2302007EN"
Ip Degree Of Protection	IP20 IEC 60529
Packaging Without Single Use Plastic	No
Pep Code	"ENVPEP2302007EN"
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	10 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2302007EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-04-01
Psr Version	PSR-0005-ed2-2016 03 29
