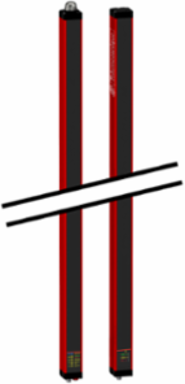

Telemecanique Sensors XUSL4MA3BB081N Safety light curtain type 4, Telemecanique Safety light curtains XUSL, integrated muting hardware/soft config T4 3 B H=81 cm D4 12 m
Telemecanique Sensors XUSL4MA3BB081N Safety light curtain type 4, Telemecanique Safety light curtains XUSL, integrated muting hardware/soft config T4 3 B H=81 cm D4 12 m
- MPN: XUSL4MA3BB081N
- PPN: TES-XUSL4MA3BB081N
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2140.37/ EA
Description
This XUSL4M Type 4 Safety Light Curtain with built-in muting function and configuration software is designed for body detection of operator in the vicinity of hazardous machinery. Its transmitter-receiver system creates 3 light beams with a protected height of 810mm. Its PFHD reliability data is 9.63 x 10⁻⁹. It has an aluminum case and its integral LEDs offer a local Signaling for clearly display of device's status and an integrated Muting lamp on the top of the receiver. It can be used as standalone sensor (i.e without safety control unit) or in association with an appropriate safety control unit. It has 2 NO Solid State PNP safety outputs (OSSDs) and meets the requirements of category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508 and Type 4 in compliance with EN/IEC 61496-1, EN/IEC 61496-2. Its operating temperature range is -30°C to +55°C and the sensing distance is 0m to 4m or 0m to 12m selectable by wiring.
Specifications
Environment
- Product Certifications
- TÜV || CE || cULus
- Shock Resistance
- 10 gn 16 ms IEC 61496-1
- Vibration Resistance
- 0.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1
- Directives
- 89/655/EEC - work equipment || 98/37/EEC - machinery || 89/336/EEC - electromagnetic compatibility
- Relative Humidity
- 0-95 % without condensation
- Safety Level
- type 4 IEC 61496-1 || SIL 3 IEC 61508 || SILCL 3 IEC 62061 || category 4 EN/ISO 13849-1 || PL = e EN/ISO 13849-1
Ambient Air Temperature For Operation-30-55 °C || -22-131 °F
Environmental Characteristicresistance to light disturbance EN/IEC 61496-2
Ip Degree Of ProtectionIP65 || IP67
Ambient Air Temperature For Storage-30-70 °C || -22-158 °F
Safety Reliability DataPFHd = 9.63E-9 1/h IEC 61508
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406015EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1406015EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Connection
- 1 male connector M12 5 pins transmitter || 2 female connectors M12 5 pins transmitter || 1 male connector M12 12 pins receiver || 3 female connectors M12 5 pins receiver
- Offer Type
- standard distance
- Emission
- IR LED 950 nm
- Maximum Voltage Drop
- <0.5 V
- Supply
- power supply IEC 61496-1 || power supply IEC 60204-1
- Local Signalling
- 1 multi-colour LED transmitter || 10 dual colour LEDs receiver
- Housing Colour
- red RAL 3000
- [Ie] Rated Operational Current
- 2 A
- Output Voltage
- 24 V
- Output Circuit Type
- DC
- [Us] Rated Supply Voltage
- 24 V DC +/- 20 %
Current Consumption35 mA no-load transmitter || 85 mA no-load receiver || 900 mA with maximum load receiver
Fixing Modeby fixing brackets
Response Time5.5 ms
Output Current Limits0.4 A safety outputs OSSD
Net Weight4.8 kg
Function Availabletest || muting || LED display of operating modes and faults
Materialaluminium casing || polycarbonate front panel || polypropylene end caps
Kit Compositionadjustable mounting bracket(s) || 1 receiver || 1 transmitter || 1 user guide with certificate of conformity on CD-ROM
Detection Systemtransmitter-receiver system
[Eaa] Effective Aperture Angle2.5 ° at 3 m
Specifications
- Range Of Product
- Telemecanique Safety light curtains XUSL
- Output Type
- 2 safety outputs OSSD solid-state PNP arc suppression)
- Height Protected
- 810 mm
- Product Specific Application
- for body protection
- Number Of Beams
- 3
- Device Short Name
- XUSL4M
Product Or Component Typesafety light curtain type 4
Type Of Startmanual || automatic
Control Typeselected by wiring
Distance Between Axis400 mm
[Sn] Nominal Sensing Distance0-12 m by cabling || 0-4 m by cabling
