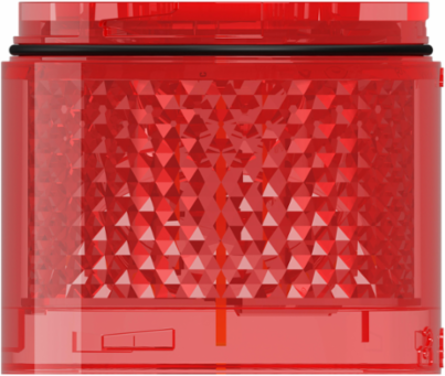

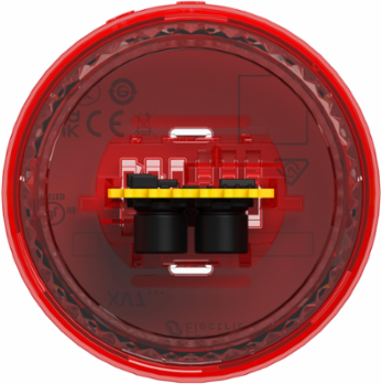

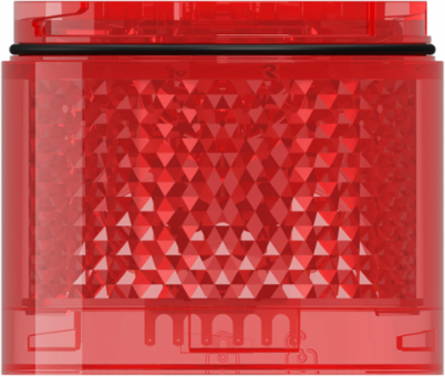

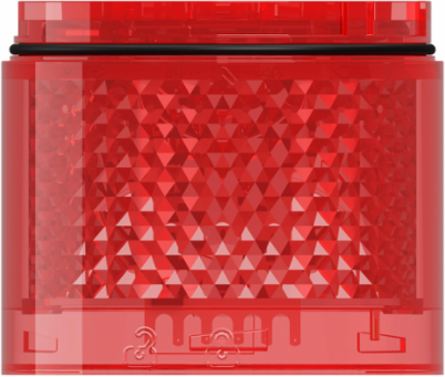

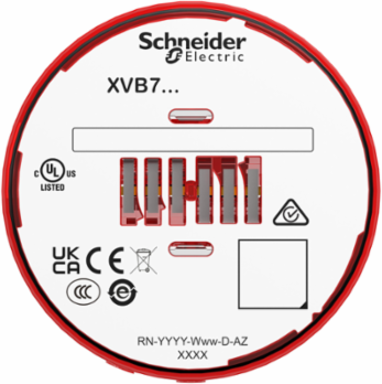

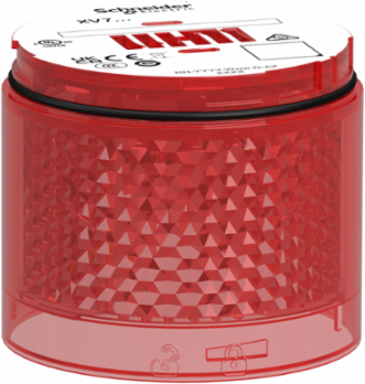

Schneider Electric XVB7C64 Light Module, Harmony XVB7 Modular Tower Light, Red, Ø70mm, Flashing, Colored Lens
- MPN: XVB7C64
- PPN: SCH-XVB7C64
- UNSPSC: 32151503
CAD
$171.15
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Light Module, Harmony XVB7 Modular Tower Light, Red, Ø70mm, Flashing, Colored Lens
Features

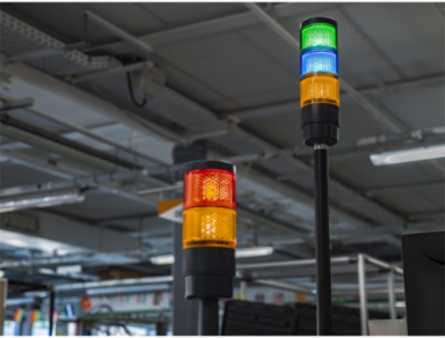

- Featuring a large 70 mm diameter illuminated face and a distinct 2 Hz pulsing frequency, this intense red light module cuts through visual distractions to deliver crucial status warnings. The diamond-cut lens maximizes illumination dispersion to provide clear $360^\circ$ peripheral visibility, instantly alerting plant operators to critical machinery faults, safety breaches, or urgent stop conditions before they cause damage.
- Designed as a flexible stackable element, this standard lens module effortlessly twists and locks onto Harmony XVB7 base units, audible sounders, and companion light blocks without requiring any complex hardwiring. This rapid, tool-free assembly allows control systems integrators to customize multi-tier signaling configurations on the fly and radically simplifies on-site replacements to reduce machine downtime.
- Engineered with an adaptable 24V operational voltage range, this light segment integrates flawlessly with standard PLC outputs, machine controllers, and auxiliary power supplies. Its highly efficient, solid-state LED design draws only 180 mA on AC lines and 250 mA on DC lines, minimizing thermal generation inside your indicator stack and protecting nearby sensitive electronics from excessive inrush power drops.
- Boasting heavy-duty Polycarbonate (PC) construction and a sealed gasket design, this indicator unit carries a robust IP66 ingress protection and NEMA Type 4/4X/12/13 indoor rating. It completely blocks out fine wood dust, ambient metallic shavings, and high-pressure water jets, making it the perfect reliable choice for food processing facilities, automotive assembly lines, and heavy manufacturing plants.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany |
|---|
| Weight | 172.3 g |
|---|
Complementary Attributes
| Rated Operational Voltage Limits | 21.6...26.4 V AC/DC |
|---|---|
| Ui Rated Insulation Voltage | 50 V |
| Ue Rated Operational Voltage | 24 V AC/DC |
|---|---|
| Uimp Rated Impulse Withstand Voltage | 0.5 kV |
Important Information Attributes
| Device Composition | standard lens, standard lens |
|---|---|
| Certificate Agency | cULus, CCC, RCM, UKCA, CE |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.2 kg CO2 eq., 0.17164079736424612 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 2 kg CO2 eq., 2.0722504218272904 |
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2025-02-06 |
| Return Indicator | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2501029EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2447 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Current Consumption | 180 mA 24 V AC250 mA 24 V DC |
| Electrical Shock Protection Class | class II |
| Inrush Current | 1 A |
| Material | PC (polycarbonate) |
| Mounting Position | upright/inverted |
| Product Or Component Type | light module |
| Returnability | Yes |
| Shock Resistance | 30 gn 6 ms) in operation |
| Sustainable Packaging | No |
| Vibration Resistance | 6 gn +/- 0.5 mm 10-500 Hz)in operation |
| Light Source 1 Light Block Color | red |
| Data Source | extrapolated product |
| Customs Code | 8531809051 |
| Functional Unit Description | The major function of the Harmony XVB7 range of products is to offer optical or audio signalling to operators, technicians, supervisors and other people who are engaged in the work specifically to identify the various states or sequences of a machine or installation from a distance through 360° in life span of 10 years.This product will be active for 73% of the time with a power consumption of 8.4W and adhering to standards IEC 60947-5-1. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 131.4 |
| Pep End Of Validity Date Calculated | 2030-06-28 |
| Signalling Type | flashing, flashing |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 0.06008836087959548, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0009568531054885027, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 64 kg CO2 eq., 63.68600174441161 |
| Local Publishable Date | 2026-03-26 |
| Pre Comm Date | 2025-02-06 |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Device Short Name | XVB7 |
| Flashing Frequency | 2 Hz |
| Light Source | LED, red |
| Mounting Diameter | 70 mm |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony XVB7 |
| Service Life In Hours | 50000 h |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 66 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 87 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-60 °C, -25-60 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 65.99093817758823 |
| Environmental Disclosure | ENVPEP2501029EN |
| Ip Degree Of Protection | IP66 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-06-28 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2501029EN |
| Eu Rohs Directive | Compliant By Exemption |
| Nema Degree Of Protection | UL type 4X/13 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2501029EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | light module |
|---|
| Range Of Product | Harmony XVB7 |
|---|
ETIM
| ETIM 8 | EC000232 |
|---|---|
| ETIM 10 | EC000232 |
| ETIM 9 | EC000232 |
|---|
Contractual Warranty Attributes
| Warranty | 18 months |
|---|
