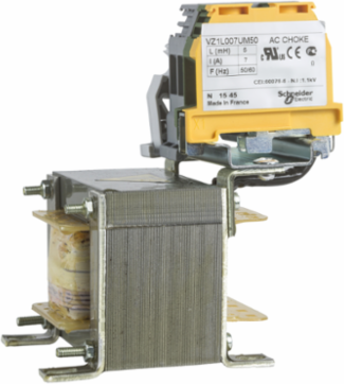

Schneider Electric VZ1L007UM50 Line Choke 5 mH 7 A Single Phase 20 W for Variable Speed Drive

MPN: VZ1L007UM50
PPN: SCH-VZ1L007UM50
UNSPSC: 39121012

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$138.97

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This line choke from Schneider Electric is designed specifically for use with variable speed drives, enhancing the performance of your motion control systems. With its impressive 5 mH inductance and a current rating of 7 A, it plays a crucial role in reducing harmonics and improving efficiency in single-phase applications. By providing stable operation and protection for devices, this component ensures reliability in automation and control settings, making it an essential part of servo motor applications. Its robust design meets the demanding needs of modern industrial environments, making it an indispensable tool for optimizing motion control solutions.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Depth	95 mm

Complementary Attributes

Line Rated Current	7 A

Maximum Voltage Drop At Rated Load	5 %

Important Information Attributes

Certificate Agency	IEC 60076 (with HD398), VDE 0160 level 1, EN 50178
Local Publishable Date	2026-01-12
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2017
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Persona Type Names	End User
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Device Application	reduction of current harmonics
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Altivar
Supply Frequency	50...60 Hz
Thermal Losses	20 W
Height Nominal	100 mm
Accessory / Separate Part Category	protection accessories
Warranty In Months	18

Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Component not in scope – non independent function
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Persona Type Ids	EU
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Phase	single phase
Product Or Component Type	line choke
Returnability	No
Sustainable Packaging	No
Value Of Inductance	5 mH
Width Nominal	60 mm
Nbr. Of Units In Pkg.	1

Environment Attributes Main

Product Compatibility	ATV312H055M2 - line choke - 1 per drive, ATV312H075M2 - line choke - 1 per drive, ATV31C055M2 - line choke - 1 per drive, ATV31C075M2 - line choke - 1 per drive, ATV32H055M2 - line choke - 1 per drive, ATV32H075M2 - line choke - 1 per drive, LXM05D10F1 - line choke - 1 per drive, LXM05D10M2 - line choke - 1 per drive, LXM32.U45M2 - line choke - 1 per drive, variable speed drive ATV320 0.55 kW 200...240 V - single phase - line choke - 1 per drive, variable speed drive ATV320 0.75 kW 200...240 V - single phase - line choke - 1 per drive
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Ip Degree Of Protection	choke IP00terminals IP20
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
