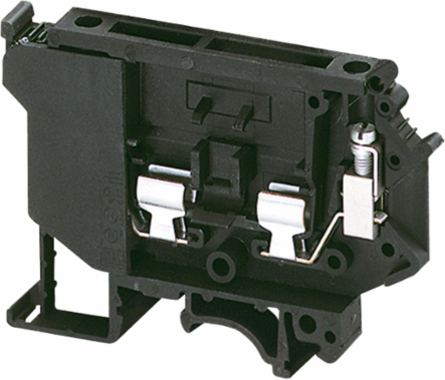

Schneider Electric NSYTRV42SF5LD Linergy TR Fused Disconnect Terminal Block, 2 Points for 5x20/25/30mm Fuse, Black
- MPN: NSYTRV42SF5LD
- PPN: SCH-NSYTRV42SF5LD
CAD
$35.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Linergy TR is terminal block for Linergy. It belongs to fuse disc terminal with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 6.3A conforming to EN/IEC 60947-7-1, 6.3A conforming to CSA and 12A cURus. It has black surface treatment. Mounting by clip-on and sideways connection with 5x20mm fuse. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Turkey, United States
Physical Attributes
- Color
- Black
- Wire Stripping Length
- 8 mm
Fuse Size5 x 20 mm
Complementary Attributes
- Line Rated Current
- 6.3-6.3 A EN/IEC 60947-7-112-12 A UL, 6.3-6.3 A CSA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cable Cross Section
- 0.2-4 mm², flexible without cable end, 0.2-4 mm², solid
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
- Surface Resistance
- 1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
- Certificate Agency
- CSA, UL
- Connections - Terminals
- 1 x screw terminal upstream, 1 x screw terminal downstream
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.0524105, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.115114879
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- terminal block
- Device Short Name
- TRV
- Dielectric Strength
- 1000 V IEC 60243-1
- Flame Retardance
- V0 0.8 mm UL 94
- Mounting Mode
- clip-on
- Number Of Terminals
- 2
- Product Name
- Linergy TR
- Provided Equipment
- 12...30 V light indicator
- Range
- Linergy
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Terminal Block Type
- fused disconnect
- Total Lifecycle Carbon Footprint
- 6 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Connect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 21 A, a rated cross-section 2.5 mm², a rated voltage 690 V.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; GE
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 46
- Length Total
- 72.5 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 18.000 g
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Creep Resistance500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
Resistivity10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
Tool Typeconnection screwdriver, disconnection screwdriver
[Ue] Rated Operational Voltage500 V EN/IEC 60947-7-1600 V UL, 600 V CSA
Carbon Footprint Of The Distribution Phase [A4]0.002484601, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.001552841
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]6 kg CO2 eq., 5.932823377
Local Publishable Date2026-06-27
Stocking FlagY
Weee ApplicabilityComponent
Weee Exclusion RationaleComponent not in scope – non independent function
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2518
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Connection Positionsideways
Dielectric Constant3.7 at 1 MHz
Energy Efficiency OptimizedFalse
Materialpolyamide 6/6: insulating case
Nominal Cross Section4 mm²
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeterminal block
Quantity Per Setset of 50
Range Of ProductLinergy
Software Versionv5.9.4
Terminal Block Level1
Tightening Torque0.5-0.8 N.m
Pep CodeENVPEP2309018EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal56.5 mm
Width Nominal8.2 mm
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2309018EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
Halogene PerformanceHalogen free plastic parts product
Mercury FreeYes
Carbon Footprint6.104386197
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Product CompatibilitySpacial enclosures
Pep CodeENVPEP2309018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
