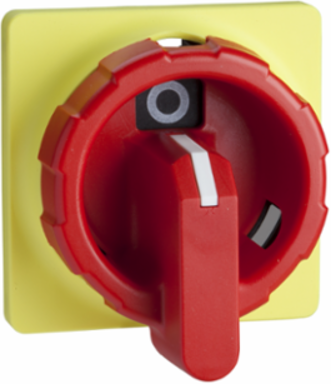

Schneider Electric KCF1YZ TeSys Vario Rotary Handle Switch, 60x60mm, IP40, Padlockable
- MPN: KCF1YZ
- PPN: SCH-KCF1YZ
CAD
$30.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
KCF1YZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For use with switch bodies VN12-VN20 and V02-V2, it provides a red & yellow operator, a 60x60mm front plate, 4 screws fixing, for emergency stop usage. KCF1YZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For door mounting, it operates an enclosed switch body VN12-VN20 or V02-V2 directly or through a shaft extension. It provides a red & yellow operator, a 60x60mm front plate and 4 screws fixing. It is intended for emergency stop usage, ensures NEMA type 12 / IP65 protection and is padlockable. Handle operator for door mounting for the operation of a Vario switch disconnector body VN12-VN20 and V02-V2 inside a cabinet. Low profile red handle with 60x60mm yellow plate for emergency stop applications. NEMA type 12 handle operator / ensure IP65 protection. Padlockable with 3 padlocks.
