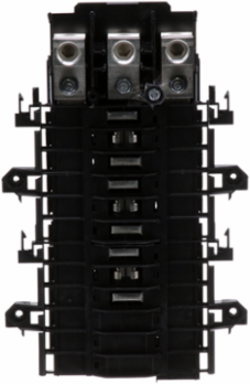

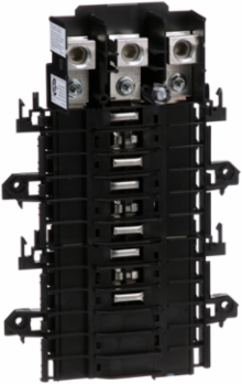

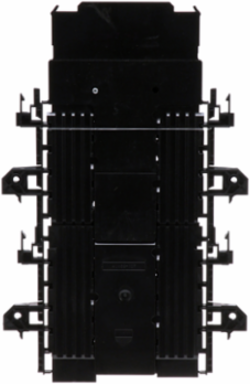

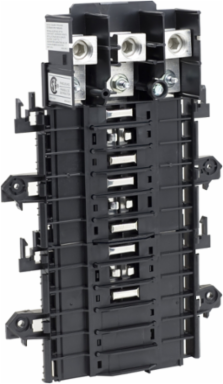

Schneider Electric QON318L200 QO Mounting Base, 18 Spaces, 200A Main Lugs, 3 Phase, 10 kA
- MPN: QON318L200
- UPC: 785901868255
- PPN: SCH-QON318L200
CAD
$397.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 200A 240 VAC 3 phase 4 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 18 spaces. This mounting base will accept only QO plug on circuit breakers. The QON mounting base is UL component recognized.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth77 mm
Complementary Attributes
- Line Rated Current
- 200 A
Important Information Attributes
- Persona Type Ids
- EU, OM
- Certificate Agency
- UL Recognized, CSA
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1906
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Circuit Breaker Type
- QO
- Energy Efficiency Optimized
- False
- Mounting Mode
- plug-on
- Number Of Spaces
- 18
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- QO
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2212001EN
- Width Nominal
- 202 mm
- Short-circuit Current
- 10 kA
- Package Weight(Lbs)
- 1.465 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Awg Gauge4 AWG...300 kcmil aluminium/copper
Device Compositiongrounding bar (ordered separately)
Load Center Typemain lugs
Number Of Circuits18
Phase3 phase 3 wires
Product Or Component Typemounting base
ReturnabilityYes
Tightening Torquemain lugs 250 lb.in, 4 AWG...300 kcmil, aluminium/copper
Height Nominal318 mm
[Ue] Rated Operational Voltage120/240 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538100000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP2212001EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2212001EN
General Attributes
- Phase
- 3 phase 3 wires
- Range Of Product
- QO
Product Or Component Typemounting base
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
