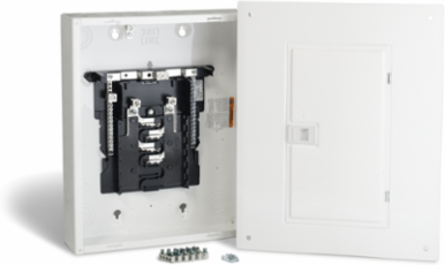

Schneider Electric CHOM816L125GC Homeline Loadcentre, 1 Phase, 8 Spaces, 16 Circuits, 125A Main Lugs

Homeline Loadcentre, 1 Phase, 8 Spaces, 16 Circuits, 125A Main Lugs
  • MPN: CHOM816L125GC
  • UPC: 785901612827
  • PPN: SCH-CHOM816L125GC

Spec sheet

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$163.37/ EA

    Description

    CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has main lugs that are rated at 125A single phase. This CHOM load center provides a 10kA breaking capacity. This system provides 8 spaces in a NEMA 1 enclosure. A grounding bar is included but not installed. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.

    Specifications

    Amperage
    125 A
    Short-Circuit Current
    10 kA
    Number Of Spaces
    8
    Loadcenter Type
    Main lugs
    Mounting Mode
    wall mount
    Material
    tin plated aluminum busbar, welded sheet steel enclosure
    Wire Gauge
    AWG 6 to 2/0 aluminum/copper
    Cover Plate Colour Tint
    white
    Ambient Air Temperature For Operation
    -5 °C to 40 °C
    Range Of Product
    Homeline
    Voltage120/240 V AC
    Number Of Circuits16
    Number Of Tandem Circuit Breakers8
    Wiring Configuration3-wire
    Cover Typecombination flush/surface cover
    Electrical Connectionlugs
    NEMA Degree Of ProtectionNEMA 1 indoor
    Device Compositiongrounding bar included (not installed)
    Product CertificationsCSA
    Product Or Component TypeLoadcentre
