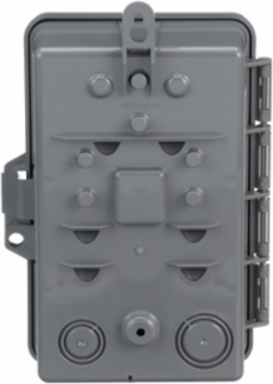

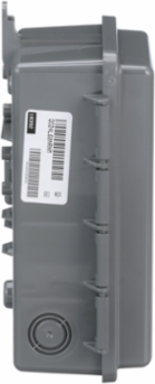

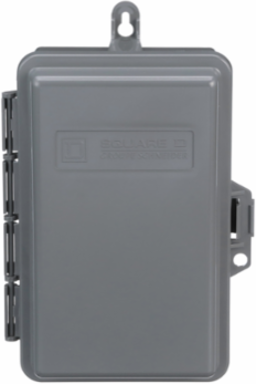

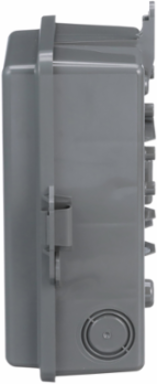

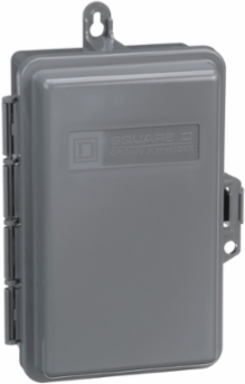

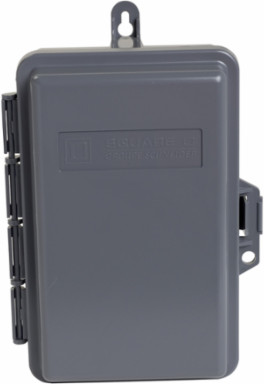

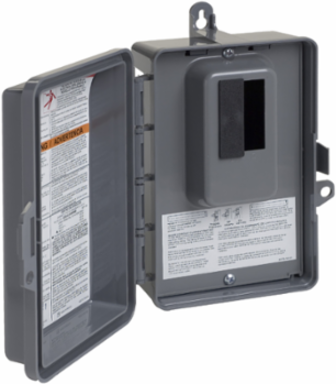

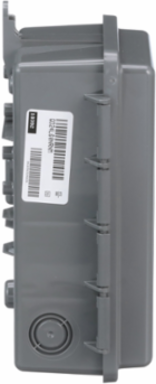

Square D QO24L60NRNM Loadcentre 1 Phase 60A Non-Metallic - 2 Spaces, 4 Circuits
- MPN: QO24L60NRNM
- UPC: 785901328025
- PPN: SCH-QO24L60NRNM
CAD
$170.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

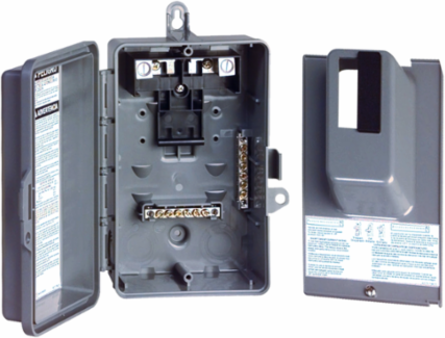

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 4 circuits. This system provides 60A fixed main lugs in a NEMA 3R enclosure. It also includes a ground bar, and is nonmetalic.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth73 mm
Complementary Attributes
- Line Rated Current
- 60 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Tightening Torque
- main lugs 35 lb.in, 14 AWG...10 AWG, aluminium/coppermain lugs 45 lb.in, 3 AWG, aluminium/coppermain lugs 40 lb.in, 8 AWG...4 AWG, aluminium/copper, main lugs 35 lb.in, 12 AWG...10 AWG, aluminium/copper
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0680461502
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 5 kg CO2 eq., 4.6832985294
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Cover Type
- surface cover
- Electrical Connection
- lugs
- Energy Efficiency Optimized
- False
- Material
- tin plated aluminium: busbar
- Number Of Circuits
- 4
- Number Of Tandem Circuit Breakers
- 2
- Product Availability
- Stock - Normally stocked in distribution facility
- Provided Equipment
- grounding bar
- Returnability
- Yes
- Surface Finish
- Gray
- Total Lifecycle Carbon Footprint
- 5 kg CO2 eq.
- Pep Code
- ENVPEP2212001EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; consumption mix, at consumer; 120V; US

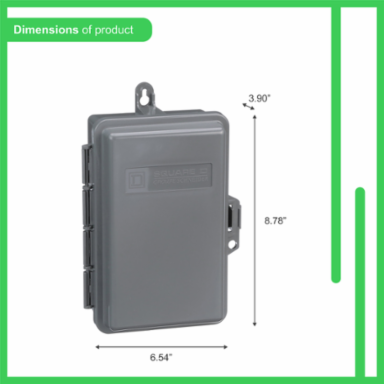

- Width Nominal
- 166 mm
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 7.4172
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1.1052
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1.1052
- Customs Code
- 8538100000
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The Distribution Phase [A4]0.2193851786, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0005120964, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.1 kg CO2 eq., 0.087341
Local Publishable Date2026-07-14
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Awg Gauge14 AWG...4 AWG aluminium/copper
Device Compositiongrounding bar (factory installed)
Enclosure Materialnon-metallic
Load Center TypeFixed Mains (lugs)
Mounting Modevertical
Number Of Spaces2
Phase1 phase 3 wires
Product Or Component TypeLoad Center
Range Of ProductQO
Software VersionEIME v5.9.4
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Lexington
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
Recyclability Potential In %88
Certificate AgencyUL Listed
Short-circuit Current65 kA
Package Weight(Lbs)762.035 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1.0634
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1.1758
Water Pollution (M3) Operational Energy Use [B6]4.3059
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2212001EN
- Nema Degree Of Protection
- NEMA 3R weatherproof enclosure
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2212001EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint5.0585829546
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase 3 wires
- Provided Equipment
- grounding bar
Product Or Component TypeLoad Center
Range Of ProductQO
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
