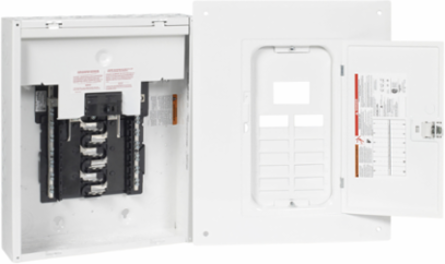

Schneider Electric CHOM1224M100GC Homeline Loadcentre 100A 24 Circuit Main Breaker, NEMA 1 Enclosure
- MPN: CHOM1224M100GC
- UPC: 785901677321
- PPN: SCH-CHOM1224M100GC
CAD
$152.88
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a plug on neutral main circuit breaker that is rated at 100 A single phase. This CHOM load center provides a 22 kA breaking capacity. This system provides 12 spaces in a NEMA 1 enclosure. The electrical connections are lugs. A grounding bar is included but not installed. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. This HOM Homeline load center has a height of 17.92 inches, a width of 14.25 inches and depth of 3.75 inches. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.
Features
- The Schneider Electric CHOM1224M100GC is a Homeline 100-Amp, 1-Phase, 120/240V AC Main Breaker Loadcentre. Designed specifically for the Canadian residential market, it acts as the central hub for a home's electrical system, distributing power from the utility meter to individual branch circuits like lights, plugs, and appliances.
- The "1224" designation indicates that this panel has 12 full-size spaces, but it is designed to accept tandem (wafer) breakers to provide a total of 24 circuits. This makes it an ideal choice for small homes, cottages, or as a secondary sub-panel for a large renovation or a detached garage.
- This model comes with a factory-installed 100A main breaker. This allows the panel to be used as "Service Entrance" equipment (the first point of disconnect for your home’s power). The main breaker provides a single point to shut off all power to the house in an emergency.
- The "GC" suffix indicates that the panel includes a factory-installed ground bar. This is a significant convenience for Canadian electricians, as it eliminates the need to purchase and install a separate grounding kit, ensuring that the panel is ready for the "bonded" configuration required by the Canadian Electrical Code (CEC).
- The loadcentre features a welded, galvanized steel enclosure with a "grey baked-on" powder coat finish. It is designed for indoor (NEMA Type 1) installation. The interior features "shielded" copper bus bars, which provide high conductivity and superior corrosion resistance compared to aluminum alternatives.
Documentation & Downloads
Specifications
Additional
- Amperage
- 100 A
- Breaking Capacity
- 22 kA
- Number of Circuits
- 24
- Number of Tandem Circuit Breakers
- 12
- Electrical Connection
- Lugs
- Grounding Bar
- Included, not installed
- Enclosure Material
- Welded sheet steel
- Cover Type
- Combination flush/surface cover
- Certification
- CSA Certified
- RoHS Compliance
- Compliant (RoHS Exemption)
- China RoHS
- Pro-active China RoHS declaration
- Environmental Disclosure
- ENVPEP1403002
- Loadcentre Type
- Main Breaker
- Mercury Free
- Yes
- Circularity Profile
- N/A
Voltage120/240 V AC
PhaseSingle phase
Number of Spaces12
Mounting ModeWall mount
Wire Gauge RangeAWG 6 to AWG 2/0 aluminum/copper
MaterialTin plated aluminum busbar
Enclosure TypeNEMA 1 indoor
Cover Plate Colour TintWhite
Ambient Air Temperature for Operation-5°C to 40°C (23°F to 104°F)
REACH ComplianceContains Substances of Very High Concern above threshold
Toxic Heavy Metal FreeYes
Product Or Component TypeLoadcentre
Wiring Configuration3-wire
Range of ProductHomeline
Country of OriginUnited States
