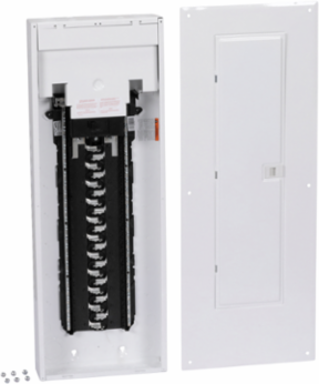

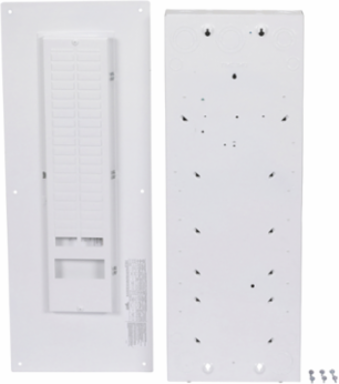

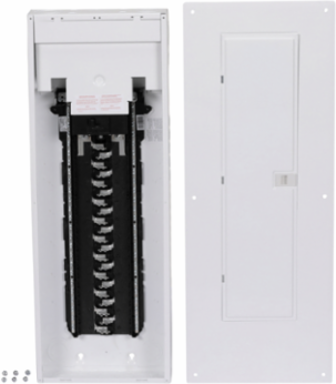

Schneider Electric CHOM4284M2100GC Homeline Loadcentre 1 Phase 42 Spaces 84 Circuits 100A Main Breaker
- MPN: CHOM4284M2100GC
- UPC: 785901980889
- PPN: SCH-CHOM4284M2100GC
CAD
$185.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a plug on neutral main circuit breaker that is rated at 100 A single phase. This CHOM load center provides a 22 kA breaking capacity. This system provides 42 spaces in a NEMA 1 enclosure. The electrical connections are lugs. A grounding bar is included but not installed. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This HOM Homeline load center has a height of 39.37 inches, a width of 14.25 inches and depth of 3.75 inches. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.
Features
- This HomelineTM Load Center comes pre-assembled with a 100A main breaker, serving as a single point of disconnect for your electrical system. This integrated design eliminates the need for purchasing a separate main breaker, simplifying your installation and ensuring full compliance with NEC requirements for service entrance equipment.
- Utilizing a space-saving design, this panel supports up to 42 full-size breakers or 84 circuits when using tandem breakers. This high-density configuration allows you to manage extensive modern loads such as EV chargers, HVAC systems, and smart home tech without the costly need for a sub-panel later.
- Designed specifically for Schneider Electric s innovative Plug-On Neutral (PoN) breakers, this load center allows AFCI and GFCI breakers to snap directly onto the neutral bar. By removing the need for "pigtail" wires, you reduce gutter clutter, improve airflow for heat dissipation, and cut installation time by up to 20% while maintaining a cleaner, more professional finish.
- The HBL2311-standard equivalent for load centers, this NEMA 1 enclosure is built from heavy-duty galvanized steel for superior indoor protection. The included combination flush/surface cover features a spring-loaded door and a "shroud" over the main breaker, ensuring a safe, sleek installation in finished drywall or on open masonry walls.
Documentation & Downloads
Specifications
Key Specifications
- Mounting Mode
- wall mount
- Range Of Product
- Homeline
- Product Or Component Type
- Loadcentre
Short-Circuit Current22 kA
[In] Rated Current100 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Cover Plate Colour Tint
- white
- Number Of Tandem Circuit Breakers
- 42
- Electrical Connection
- lugs
- Awg Gauge
- AWG 4...250 kcmil aluminum/copper
- Number Of Circuits
- 84
- Loadcentre Type
- Main Breaker
- Network Number Of Phases
- 1 phase
Cover Typecombination flush/surface cover
Materialtin plated aluminum: busbar
Enclosure Materialwelded sheet steel
Wiring Configuration3-wire
Number Of Spaces42
Device Compositiongrounding bar included (not installed)
Box Number12
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403002
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Environment
- Product Certifications
- CSA
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor)
