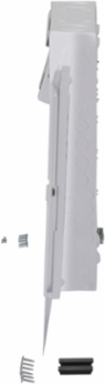

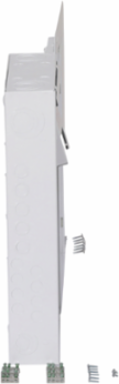

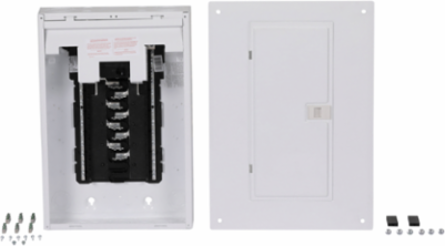

Schneider Electric CHOM1632M100GC HomeLine Load Centre 100A 1-Phase 32 Circuit Main Breaker
- MPN: CHOM1632M100GC
- UPC: 785901615507
- PPN: SCH-CHOM1632M100GC
CAD
$164.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a plug on neutral main circuit breaker that is rated at 100 A single phase. This CHOM load center provides a 22 kA breaking capacity. This system provides 16 spaces in a NEMA 1 enclosure. The electrical connections are lugs. A grounding bar is included but not installed. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. This HOM Homeline load center has a height of 20.92 inches, a width of 14.25 inches and depth of 3.75 inches. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.
Features
- The Schneider Square D CHOM1632M100GC is a single-phase, 100-Amp Main Breaker load center. Unlike "Main Lug" panels used as sub-panels, this unit comes with a factory-installed 100A main circuit breaker. It serves as the primary electrical service entrance for a small-to-medium home, a large apartment, or a dedicated workshop.
- The "1632" code indicates its high-density capability: 16 Spaces: It has 16 physical slots for standard full-size breakers. 32 Circuits: By using "tandem" (twin) breakers, the interior design allows you to expand up to 32 separate circuits. This provides excellent future-proofing if you decide to add more equipment or renovations later.
- This panel is designed for Plug-On Neutral breakers (like CAFCI and GFCI units). Instead of wiring a white "pigtail" to the neutral bar, the breaker snaps directly onto the neutral rail. This creates a much cleaner, organized gutter space, improves airflow, and significantly reduces installation time.

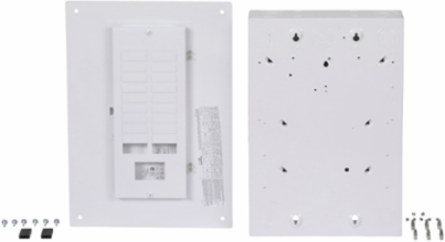

- The "C" in the part number means it includes a Combination Cover. This allows the panel to be mounted flush (recessed into the drywall between studs) or surface (bolted directly to the face of a wall). The cover features a professional grey finish and a secure latching door.
- he "GC" suffix denotes a Canadian value package. It typically includes: A factory-installed 100A Main Breaker. A factory-installed Ground Bar. Often includes a selection of branch breakers (check the specific retailer bundle, as these usually come with several 15A single-pole breakers to get you started).
Documentation & Downloads
Specifications
Key Specifications
- Mounting Mode
- wall mount
- Range Of Product
- Homeline
- Product Or Component Type
- Loadcentre
Short-Circuit Current22 kA
[In] Rated Current100 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Cover Plate Colour Tint
- white
- Number Of Tandem Circuit Breakers
- 16
- Electrical Connection
- lugs
- Awg Gauge
- AWG 6...AWG 2/0 aluminum/copper
- Number Of Circuits
- 32
- Loadcentre Type
- Main Breaker
- Network Number Of Phases
- 1 phase
Cover Typecombination flush/surface cover
Materialtin plated aluminum: busbar
Enclosure Materialwelded sheet steel
Wiring Configuration3-wire
Number Of Spaces16
Device Compositiongrounding bar included (not installed)
Box Number7
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403002
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Environment
- Product Certifications
- CSA
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor)
